OH10009 - GaAs Hall Device

OH10009 Description

GaAs Hall Devices OH10009 GaAs Hall Device Magnetic sensor I .

OH10009 Features

* Hall voltage: typ. 105 mV (VC = 6 V, B = 0.1 T)
* Input resistance: typ. 0.75 kΩ
* Satisfactory linearity of GaAs hall voltage with respect to the magnetic field
* Small temperature coefficient of the hall voltage: β ≤
* 0.06%/°C
* Sealed in the Mini

OH10009 Applications

* 1.1
* 0.1 0.16
* 0.06 + 0.2 + 0.1 0.4
* 0.05 + 0.1 1 OH10009 PD  T a 200 180 240 B = 1 kG IC = 6 mA 200 GaAs Hall Devices VH  Ta 1 600 1 400 RIN  Ta B=0 IC = 1 mA Power dissipation PD (mW) 160 140 120 100 80 60 40 20 0 0 20 40 60 80 100 120 140 160 Input resis

📥 Download Datasheet

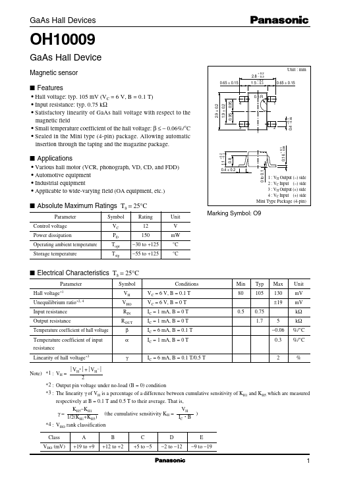

Preview of OH10009 PDF
