MA4120 Silicon planar type

MA4120 Description

www.DataSheet4U.com Zener Diodes MAZ4000 Series (MA4000 Series) Silicon planar type Unit: mm For stabilization of power supply s .

MA4120 Features

* High reliability, achieved by the DHD structure
* Allowing to insert to a 5 mm pitch hole
* Finely divided zener-voltage rank
* Sharp rising performance
* Wide voltage range: VZ = 2.0 V to 39 V φ 0.40±00.5 13 min. Colored band indicatesVz classification 2.7±

📥 Download Datasheet

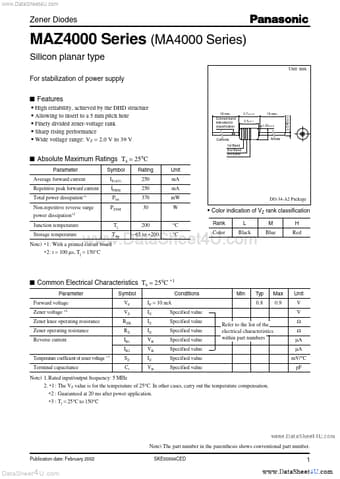

Preview of MA4120 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MA4120
Manufacturer
Panasonic Semiconductor
File Size
256.60 KB
Datasheet
MA4120_PanasonicSemiconductor.pdf
Description
Silicon planar type
