MA4100, Silicon planar type

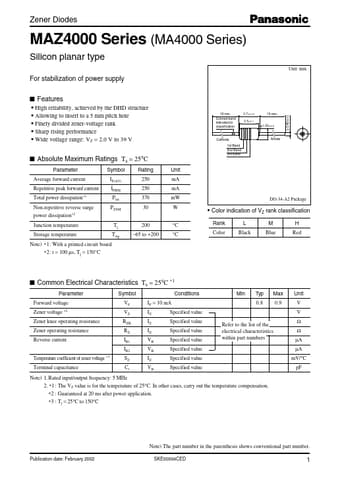

Zener Diodes MAZ4000 Series (MA4000 Series) Silicon planar type Unit: mm For stabilization of power supply s

Features

* High reliability, achieved by the DHD structure
* Allowing to insert to a 5 mm pitch hole
* Finely divided zener-voltage rank
* Sharp rising performance
* Wide voltage range: VZ = 2.0 V to 39 V φ 0.40±00.5 13 min. Colored band indicatesVz classification 2.7±
