PAN301BSI-208 - CMOS HIGH PERFORMANCE OPTICAL MOUSE SENSOR

Name: PAN301BSI-208
SKU: PAN301BSI-208-915410

PXI

📥 Download Datasheet

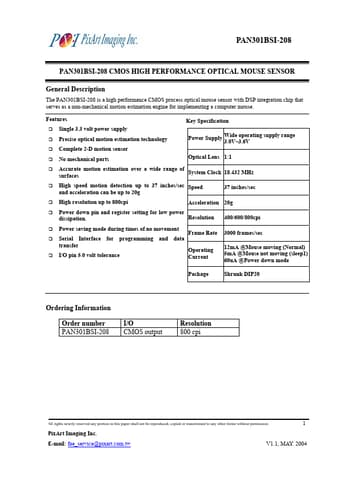

PAN301BSI-208 Datasheet Preview — Preview of PAN301BSI-208 PDF

Datasheet Details

Part number	PAN301BSI-208
Manufacturer	PXI
File Size	454.58 KB
Description	CMOS HIGH PERFORMANCE OPTICAL MOUSE SENSOR
Datasheet	PAN301BSI-208-PXI.pdf

PAN301BSI-208 Product details

Description

The PAN301BSI-208 is a high performance CMOS process optical mouse sensor with DSP integration chip that serves as a non-mechanical motion estimation engine for implementing a computer mouse.

Features

Single 3.3 volt power supply Precise optical motion estimation technology Complete 2-D motion sensor No mechanical parts Key Specification Power Supply Wide operating 3.0V~3.6V supply range Optical Lens 1:1 Accurate motion estimation over a wide range of surfaces System Clock 18.432 MHz High speed motion detection up to 37 inches/sec Speed and acceleration can be up to 20g 37 inches/sec High resolution up to 800cpi Acceleration 20g Power down pin and register setting for low power.
