PAN3402 - PS/2 OPTICAL MOUSE SOC

Description

PAN3402 is a CMOS process optical mouse SOC with PS/2 interface that serves as a non-mechanical motion estimation engine for implementing a computer mouse.

Features

  • ‰ Single 5.0 volt power supply ‰ Compatible with Microsoft Intelli 3D PS/2 and IBM PS/2 mouse Key Specification Power Supply Wide operating 4.5V ~ 5.5V supply range ‰ Precise optical motion estimation technology Interface PS/2 ‰ Complete 2-D motion sensor ‰ No mechanical parts ‰ Accurate motion estimation over a wide range of surfaces ‰ High speed motion detection up to 28 inches/sec ‰ High resolution up to 1000 CPI ‰ Power saving mode during times of no movement ‰ Support three buttons.

📥 Download Datasheet

Datasheet Details

Part number PAN3402
Manufacturer PixArt Imaging
File Size 365.42 KB
Description PS/2 OPTICAL MOUSE SOC
Datasheet download datasheet PAN3402 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PAN301A CMOS HIGH PERFORMANCE OPTICAL MOUSE SENSOR PXI
PAN301BSI-208 CMOS HIGH PERFORMANCE OPTICAL MOUSE SENSOR PXI
PAN3060C 30V N-channel enhancement mode MOSFET PSD
PAN3080L 30V N-channel enhancement mode MOSFET PSD
PAN3101 LOW COST CMOS OPTICAL MOUSE SENSOR PXI

Other Datasheets by PixArt Imaging

Part Number Description
PAN3401 PS/2 OPTICAL MOUSE
PAN3501UI USB OPTICAL MOUSE SENSOR SINGLE CHIP
PAN3502 USB OPTICAL MOUSE
PAN3504 CMOS process optical mouse sensor
PAN3507DL-TXWA CMOS process optical mouse sensor

Full PDF Text Transcription

Click to expand full text

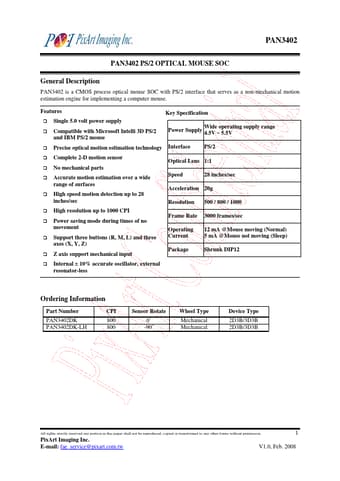

PAN3402 PAN3402 PS/2 OPTICAL MOUSE SOC General Description PAN3402 is a CMOS process optical mouse SOC with PS/2 interface that serves as a non-mechanical motion estimation engine for implementing a computer mouse. Features ‰ Single 5.0 volt power supply ‰ Compatible with Microsoft Intelli 3D PS/2 and IBM PS/2 mouse Key Specification Power Supply Wide operating 4.5V ~ 5.
