PAN3204DB-TJDM - LITTLE LOW POWER WIRELESS MOUSE SENSOR

Description

The PAN3204DB-TJDM, AKA PAN3204LL, is a high performance and little low power CMOS process optical mouse sensor with DSP integration chip that serves as a non-mechanical motion estimation engine for implementing a computer wireless mouse.

Features

  • Key Specification ‰ Single power supply ‰ Precise optical motion estimation technology ‰ Complete 2-D motion sensor ‰ Accurate motion estimation over a wide range of surfaces ‰ High speed motion detection up to 30 inches/sec ‰ High resolution up to 1600 CPI ‰ Power saving mode during times of no movement ‰ Serial interface for programming and data transfer ‰ Built-in low power Timer (LPT) for sleep1/sleep2 mode ‰ MOTSWK pin to wake up mouse controller when sensor wakes up from sleep mode ‰ Wid.

📥 Download Datasheet

Datasheet Details

Part number PAN3204DB-TJDM
Manufacturer PXI
File Size 550.19 KB
Description LITTLE LOW POWER WIRELESS MOUSE SENSOR
Datasheet download datasheet PAN3204DB-TJDM Datasheet

📁 Similar Datasheet

  • PAN3060C - 30V N-channel enhancement mode MOSFET (PSD)
  • PAN3080L - 30V N-channel enhancement mode MOSFET (PSD)
  • PAN3401 - PS/2 OPTICAL MOUSE (PixArt Imaging)
  • PAN3402 - PS/2 OPTICAL MOUSE SOC (PixArt Imaging)
  • PAN3501UI - USB OPTICAL MOUSE SENSOR SINGLE CHIP (Pixart Imaging)
  • PAN3502 - USB OPTICAL MOUSE (Pixart Imaging)
  • PAN3504 - CMOS process optical mouse sensor (Pixart Imaging)
  • PAN3507DL-TXWA - CMOS process optical mouse sensor (Pixart Imaging)
  • PAN3511 - USB OPTICAL MOUSE SINGLE CHIP (Pixart Imaging)
  • PAN101B - CMOS Optical Navigation Sensor (Pixart)
Other Datasheets by PXI
  • PAN3204DB - LOW COST WIRELESS MOUSE SENSOR
  • PAN301A - CMOS HIGH PERFORMANCE OPTICAL MOUSE SENSOR
  • PAN301BSI-208 - CMOS HIGH PERFORMANCE OPTICAL MOUSE SENSOR
  • PAN3101 - LOW COST CMOS OPTICAL MOUSE SENSOR

Full PDF Text Transcription

Click to expand full text

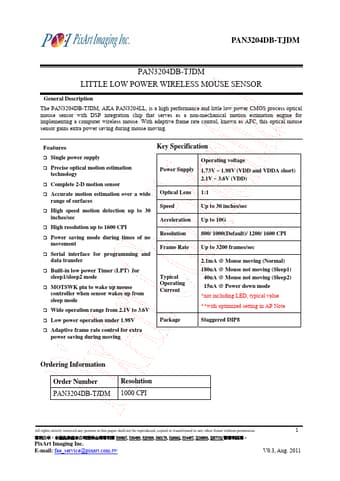

PAN3204DB-TJDM PAN3204DB-TJDM LITTLE LOW POWER WIRELESS MOUSE SENSOR General Description The PAN3204DB-TJDM, AKA PAN3204LL, is a high performance and little low power CMOS process optical mouse sensor with DSP integration chip that serves as a non-mechanical motion estimation engine for implementing a computer wireless mouse. With adaptive frame rate control, known as AFC, this optical mouse sensor gains extra power saving during mouse moving.
