SPTP12R15H - 120V N-Channel MOSFET

PIP

The SPTP12R15H by PIP is a 120V N-Channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

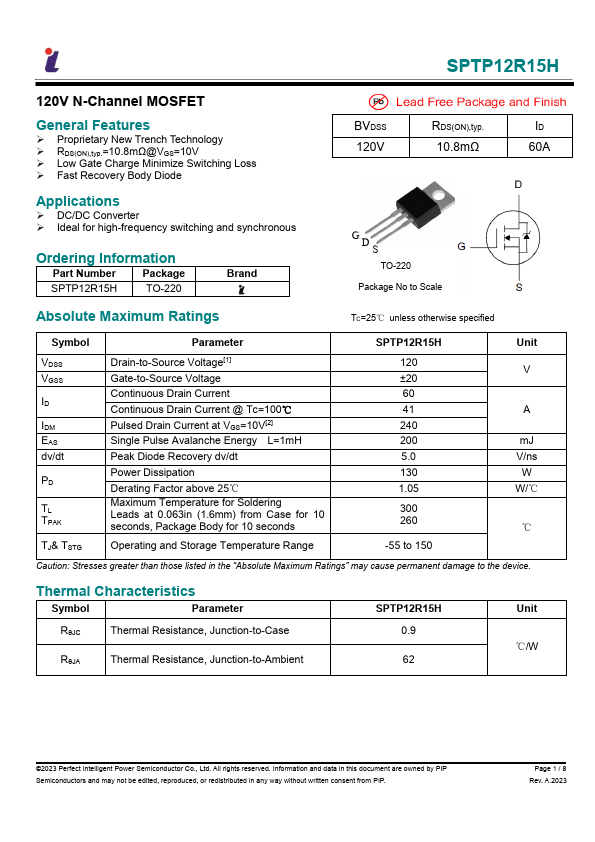

SPTP12R15H 120V N-Channel MOSFET by PIP - Datasheet Preview — Official preview page of the SPTP12R15H 120V N-Channel MOSFET datasheet (PIP).

Datasheet Details

Part number	SPTP12R15H
Manufacturer	PIP
File Size	1.03 MB
Description	120V N-Channel MOSFET
Datasheet	SPTP12R15H-PIP.pdf

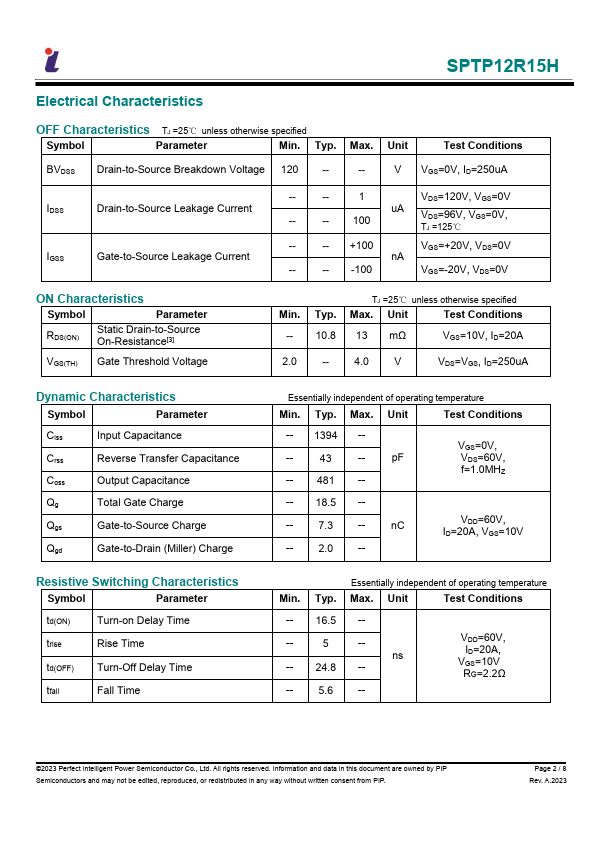

Additional preview pages of the SPTP12R15H datasheet.

SPTP12R15H Product details

Features

Proprietary New Trench Technology.
RDS(ON),typ. =10.8mΩ@VGS=10V.
Low Gate Charge Minimize Switching Loss.
Fast Recovery Body Diode BVDSS 120V RDS(ON),typ. 10.8mΩ ID 60A.
