SPTP10R027HA - 100V N-Channel MOSFET

PIP

The SPTP10R027HA by PIP is a 100V N-Channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

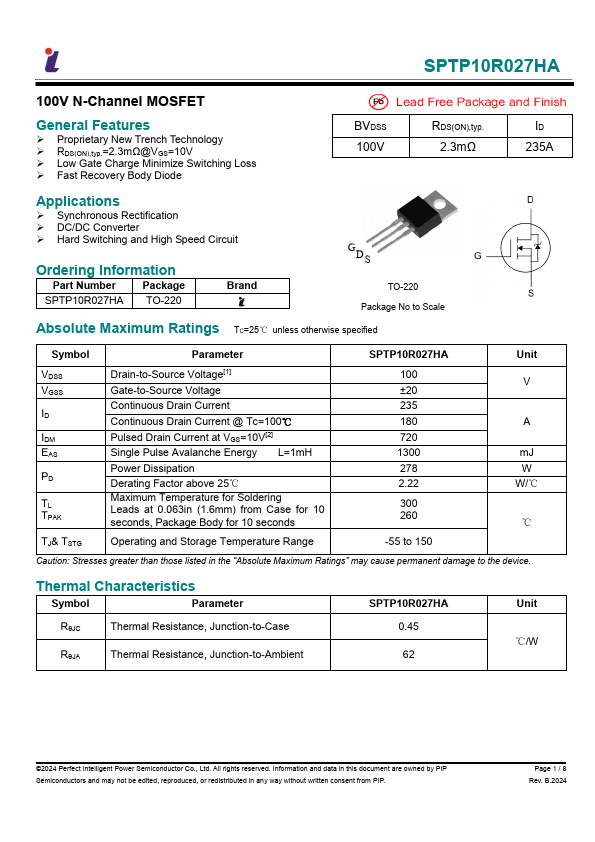

SPTP10R027HA 100V N-Channel MOSFET by PIP - Datasheet Preview — Official preview page of the SPTP10R027HA 100V N-Channel MOSFET datasheet (PIP).

Datasheet Details

Part number	SPTP10R027HA
Manufacturer	PIP
File Size	1.20 MB
Description	100V N-Channel MOSFET
Datasheet	SPTP10R027HA-PIP.pdf

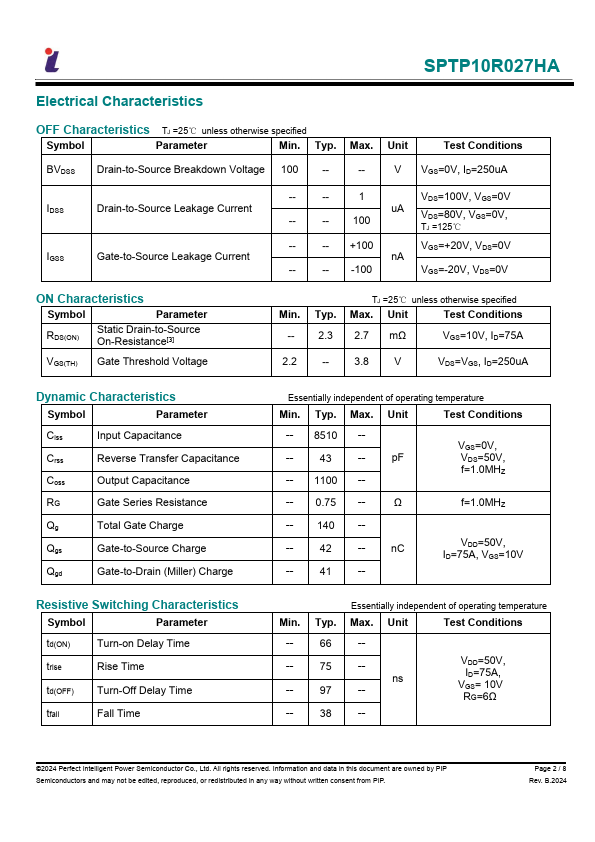

Additional preview pages of the SPTP10R027HA datasheet.

SPTP10R027HA Product details

Features

Proprietary New Trench Technology.
RDS(ON),typ. =2.3mΩ@VGS=10V.
Low Gate Charge Minimize Switching Loss.
Fast Recovery Body Diode BVDSS 100V RDS(ON),typ. 2.3mΩ ID 235A.
