SD820S - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

SD820S Description

SD820S~SD8100S DATA SHEET SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS VOLTAGE 20 to 100 Volts CURRENT - 8 Ampere .

SD820S Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O

SD820S Applications

* Low profile package
* Built-in strain relief
* Low power loss, High efficiency
* High surge capacity
* For use in low voltage high frequency inverters, free wheeling, and polarity protection applications
* High temperature soldering guaranteed:260¢XC

📥 Download Datasheet

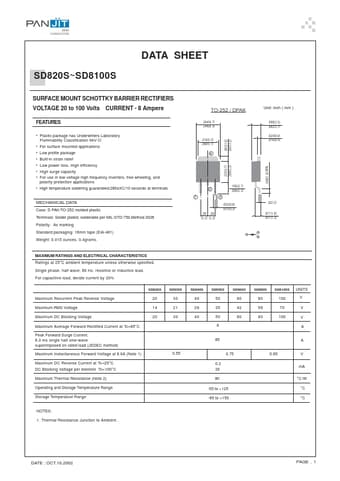

Preview of SD820S PDF
datasheet Preview Page 2

Datasheet Details

Part number
SD820S
Manufacturer
PAN JIT
File Size
36.05 KB
Datasheet
SD820S-PANJIT.pdf
Description
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
