SD820 - SCHOTTKY BARRIER RECTIFIER

SD820 Description

HITANO ENTERPRISE CORP.SD820 THRU SD8100 TECHNICAL SPECIFICATIONS OF SCHOTTKY BARRIER RECTIFIER VOLTAGE RANGE - 20 to 100 Volts CURRENT - 8.0 Ampe.

SD820 Features

* Metal to silicon rectifier majority carrier conduction
* Low power loss, High efficiency
* High current capability
* Low forward voltage drop

SD820 Applications

* MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Terminals: Solder plated, solderable per MIL-STD-750, Method 2026
* Mounting position: Any
* Weight: 0.4 grams Approx. MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25oC ambient temperatur

📥 Download Datasheet

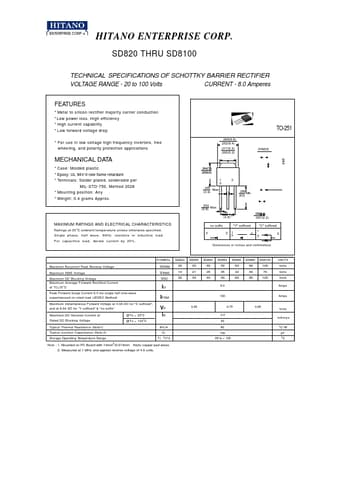

Preview of SD820 PDF
datasheet Preview Page 2

Datasheet Details

Part number
SD820
Manufacturer
HITANO
File Size
90.21 KB
Datasheet
SD820-HITANO.pdf
Description
SCHOTTKY BARRIER RECTIFIER
