SD820YT, SD880YT - (SD820YT - SD8100YT) SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

SD820YT Description

DATA SHEET SD820YT~SD8100YT SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS VOLTAGE 20 to 100 Volts .

SD820YT Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O

SD820YT Applications

* Low profile package
* Built-in strain relief
* High surge capacity
* For use in low voltage high frequency inverters, free wheeling, and polarity protection applications
* High temperature soldering guaranteed:260¢XC/10 seconds at terminals .307(7.8) .283(7.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SD820YT, SD880YT. Please refer to the document for exact specifications by model.

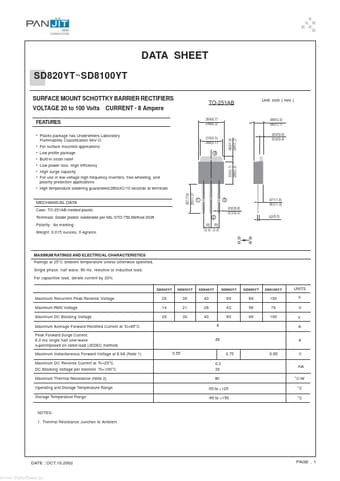

datasheet Preview Page 2

Datasheet Details

Part number
SD820YT, SD880YT
Manufacturer
Pan Jit International
File Size
57.82 KB
Datasheet
SD880YT_PanJitInternational.pdf
Description
(SD820YT - SD8100YT) SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: SD820YT, SD880YT.
Please refer to the document for exact specifications by model.
