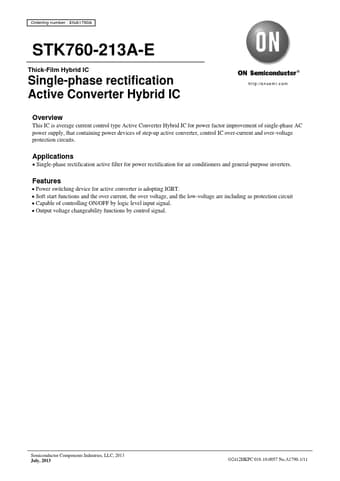

STK760-213A-E - Single-phase rectification Active Converter Hybrid IC

ON Semiconductor

Datasheet Details

Part number	STK760-213A-E
Manufacturer	ON Semiconductor ↗
File Size	95.91 KB
Description	Single-phase rectification Active Converter Hybrid IC
Datasheet	STK760-213A-E-ONSemiconductor.pdf

Power switching device for active converter is adopting IGBT.
Soft start functions and the over current, the over voltage, and the low-voltage are including as protection circuit.
Capable of controlling ON/OFF by logic level input signal.
Output voltage changeability functions by control signal. Semiconductor Components Industries, LLC, 2013 July, 2013 O2412HKPC 018-10-0057 No. A1790-1/11 STK760-213A-E Specifications Absolute Maximum Ratings at Ta = 25°C.
