STK404-070N-E 1ch class-AB Audio Power IC

STK404-070N-E Description

Ordering number : ENA2105A STK404-070N-E Thick-Film Hybrid IC 1ch class-AB Audio Power IC 60W http://onsemi.com Overview The STK404-070N-E is a hyb.

STK404-070N-E Features

* Pin-to-pin compatible outputs ranging from 60W to 180W
* Miniature package
* Output load impedance: RL = 6 recommended.
* Allowable load shorted time: 0.3 second

STK404-070N-E Applications

* for standby, mute, and the load short protection circuit. Selection Guide Output1 (10%/1kHz) Output2 (1%/20Hz to 20kHz) Maximum rating VCC max (no sig. ) Maximum rating VCC (6) Recommended operating VCC (6) Package size STK404-070N-E 60W  1ch 40W  1ch 46V 39V 30V 44.0mm25.6mm8.5mm STK404-

📥 Download Datasheet

Preview of STK404-070N-E PDF

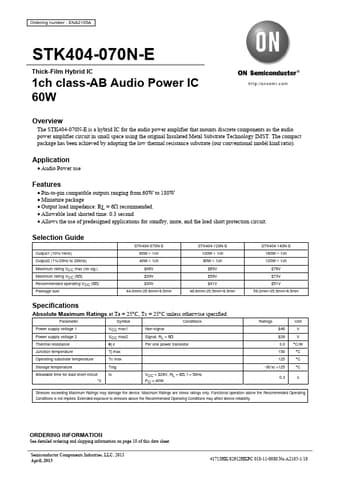

datasheet Preview Page 2 datasheet Preview Page 3
