STK7002U N-Channel Enhancement-Mode MOSFET

STK7002U Description

Semiconductor STK7002U N-Channel Enhancement-Mode MOSFET .
High speed switching application. High density cell design for low RDS(ON). Voltage controlled small signal sw.

STK7002U Features

* High density cell design for low RDS(ON).
* Voltage controlled small signal switch www. DataSheet4U. com
* High saturation current capability. Ordering Information Type NO. STK7002U Marking K72 Package Code SOT-323 Outline Dimensions 2.0~2.2 1.2~1.3 unit : mm 1 1.8~2.2 1.

📥 Download Datasheet

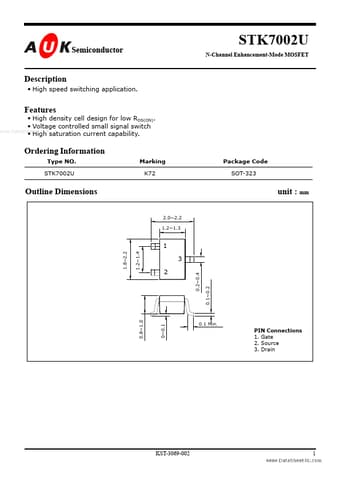

Preview of STK7002U PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STK7002U
Manufacturer
AUK
File Size
332.58 KB
Datasheet
STK7002U_AUK.pdf
Description
N-Channel Enhancement-Mode MOSFET
