PCS1P2192A - VDP Multiple Pixel Clock Generator

Name: PCS1P2192A
SKU: PCS1P2192A-690560

ON Semiconductor

📥 Download Datasheet

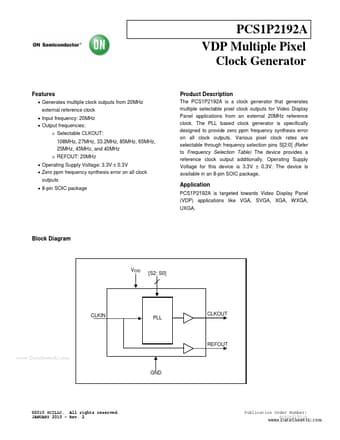

PCS1P2192A Datasheet Preview — Preview of PCS1P2192A PDF

Datasheet Details

Part number	PCS1P2192A
Manufacturer	ON Semiconductor
File Size	163.32 KB
Description	VDP Multiple Pixel Clock Generator
Datasheet	PCS1P2192A_ONSemiconductor.pdf

PCS1P2192A Product details

Description

The PCS1P2192A is a clock generator that generates multiple selectable pixel clock outputs for Video Display Panel applications from an external 20MHz reference clock.

Features

Generates multiple clock outputs from 20MHz external reference clock.
Input frequency: 20MHz.
Output frequencies: o Selectable CLKOUT: 108MHz, 27MHz, 33.2MHz, 85MHz, 65MHz, 25MHz, 45MHz, and 40MHz o REFOUT: 20MHz.
Operating Supply Voltage: 3.3V ± 0.3V.
Zero ppm frequency synthesis error on all clock outputs.
8-pin SOIC package Product.
