NCP81166A, NCP81166 - Synchronous Buck MOSFET Drivers

ON Semiconductor

📥 Download Datasheet

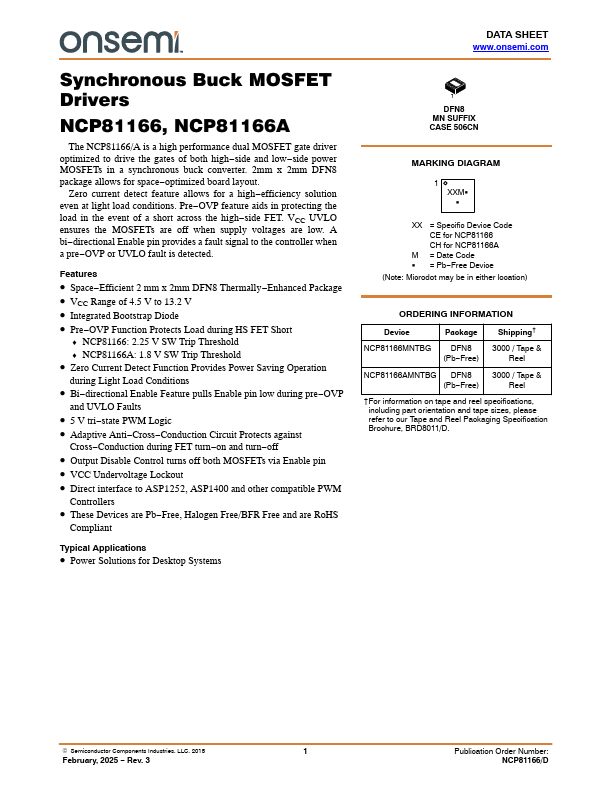

NCP81166A Datasheet Preview — This datasheet PDF includes multiple part numbers: NCP81166A, NCP81166. Please refer to the document for exact specifications by model.

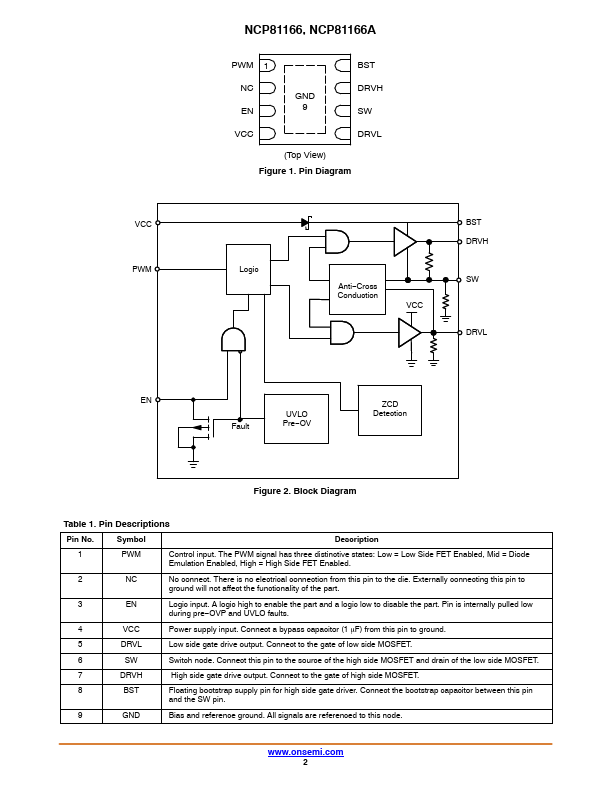

datasheet Preview Page 2

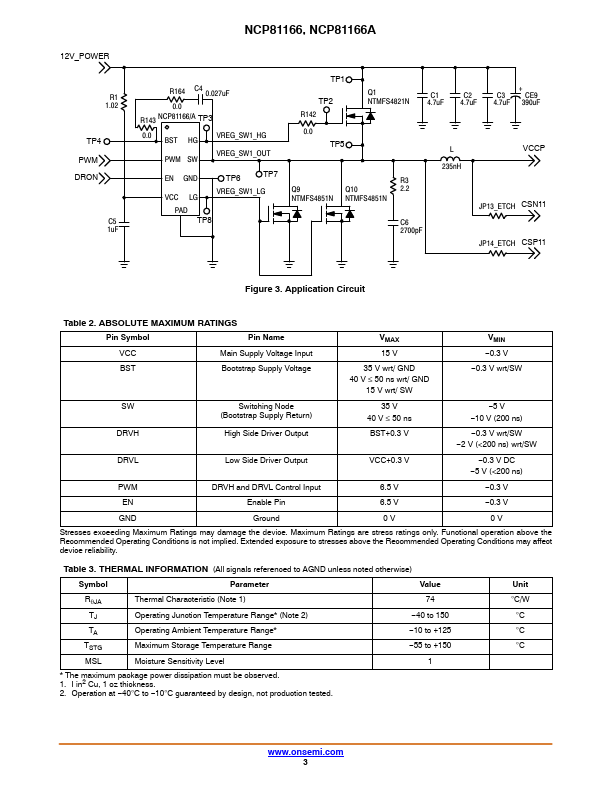

datasheet Preview Page 3

Datasheet Details

Part number	NCP81166A, NCP81166
Manufacturer	ON Semiconductor ↗
File Size	121.71 KB
Description	Synchronous Buck MOSFET Drivers
Datasheet	NCP81166-ONSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: NCP81166A, NCP81166. Please refer to the document for exact specifications by model.

NCP81166A Product details

Description

Pin No. OV

Features

Space.
Efficient 2 mm x 2mm DFN8 Thermally.
Enhanced Package.
VCC Range of 4.5 V to 13.2 V.
Integrated Bootstrap Diode.
Pre.
OVP Function Protects Load during HS FET Short.
NCP81166: 2.25 V SW Trip Threshold.
NCP81166A: 1.8 V SW Trip Threshold.
Zero Current Detect Function Provides Power Saving Operation during Light Load Conditions.
Bi.
directional Enable Feature pulls Enable pin low during pre.
