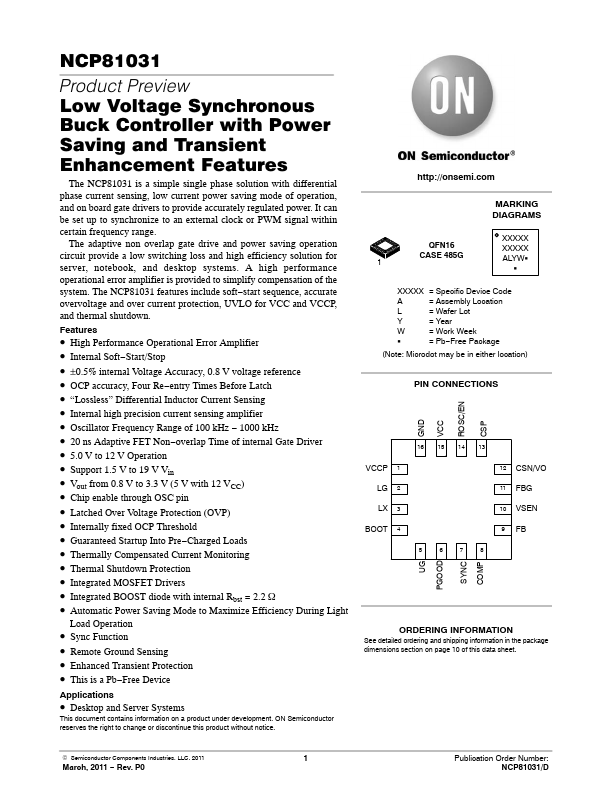

NCP81031 - Low Voltage Synchronous Buck Controller

onsemi

Datasheet Details

Part number	NCP81031
Manufacturer	onsemi
File Size	153.64 KB
Description	Low Voltage Synchronous Buck Controller
Datasheet	NCP81031-onsemi.pdf

Pin No.

The NCP81031 is a simple single phase solution with differential phase current sensing, low current power saving mode of operation, and on board gate drivers to provide accurately regulated power. It can be set up to synchronize to an external clock or PWM signal within certain frequency range. The adaptive non overlap gate drive and power saving operation circuit provide a low switching loss and high efficiency solution for server, notebook, and desktop systems. A high performance operational e.
