NCP81022 - Dual Output 4 Phase Plus 1 Phase Digital Controller

Datasheet Summary

Description

Pin No.

Features

  • Meets AMD’S SVI2 Specifications.
  • Four phase CPU Voltage Regulator.
  • One phase North Bridge Voltage Regulator.
  • Current Mode Dual Edge Modulation for Fast Initial Response to Transient Loading.
  • Dual High Performance Operational Error Amplifier.
  • One Digital Soft Start Ramp for Both Rails.
  • Startup into Pre.
  • Charged Loads while avoiding False.
  • Dynamic Reference Injection.
  • Accurate Total Summing Current Am.

📥 Download Datasheet

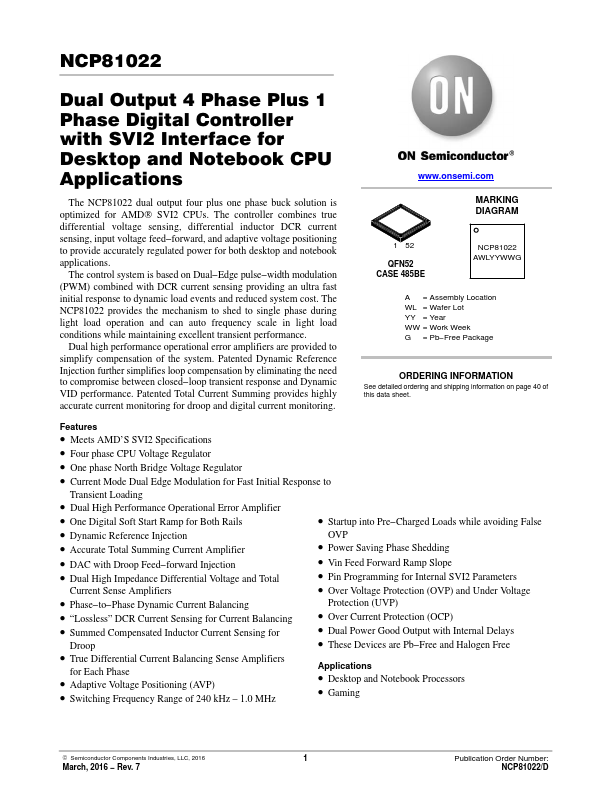

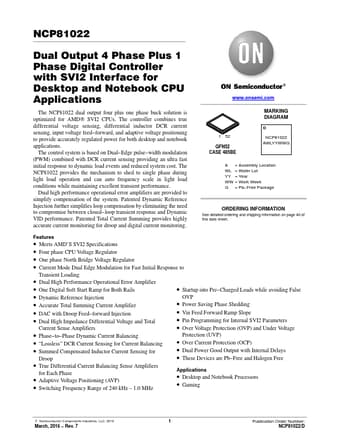

Datasheet preview – NCP81022

Datasheet Details

Part number NCP81022
Manufacturer onsemi
File Size 336.97 KB
Description Dual Output 4 Phase Plus 1 Phase Digital Controller
Datasheet download datasheet NCP81022 Datasheet

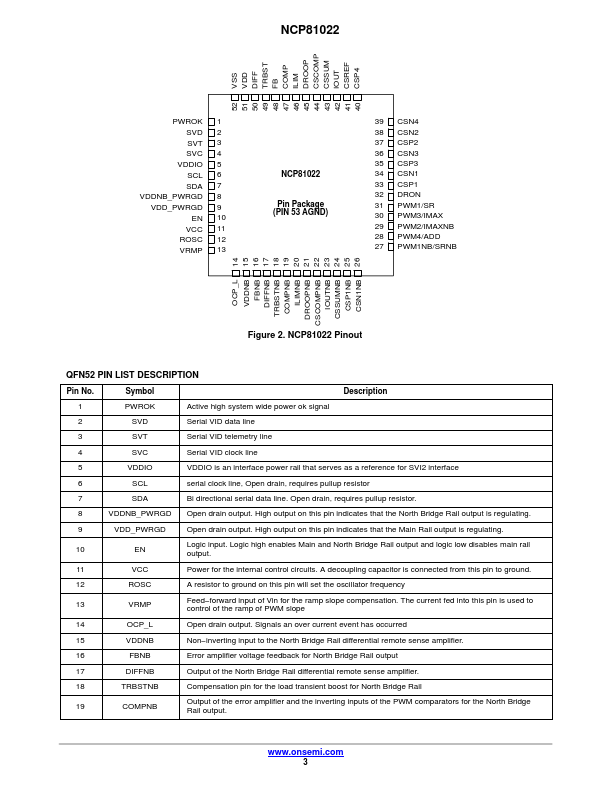

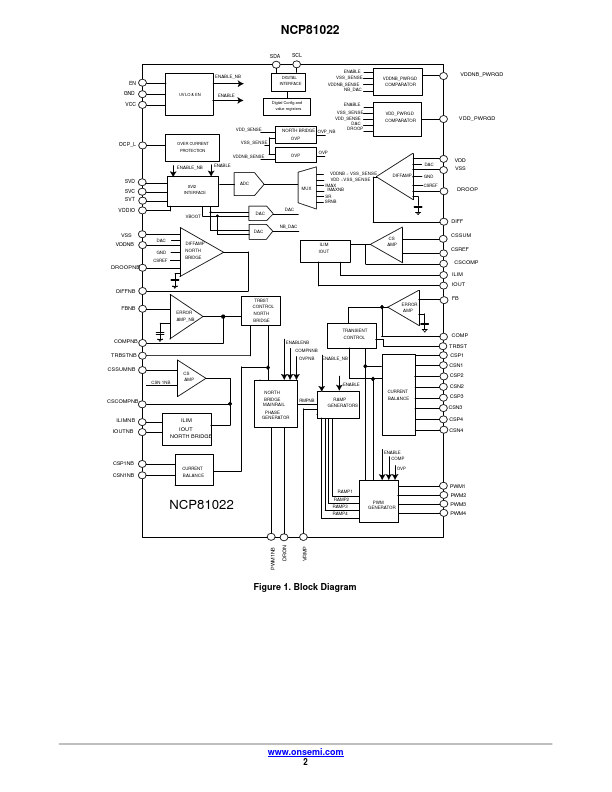

Additional preview pages of the NCP81022 datasheet.

📁 Similar Datasheet

  • NCP81038 - Synchronous Buck Controller (ON Semiconductor)
  • NCP81039 - Synchronous Buck Controller (ON Semiconductor)
  • NCP81040 - Programmable Multi-Phase Synchronous Buck Converter (ON Semiconductor)
  • NCP81042 - Precise Low Voltage Synchronous Buck Controller (ON Semiconductor)
  • NCP81044 - Low Voltage Synchronous Buck Controller (ON Semiconductor)
  • NCP81045 - Single Synchronous Step-Down Controller (ON Semiconductor)
  • NCP81046 - Low Voltage Synchronous Buck Controller (ON Semiconductor)
  • NCP81062 - VR12 Compatible Synchronous Buck MOSFET Drivers (ON Semiconductor)
  • NCP81063 - Synchronous Buck MOSFET Drivers (ON Semiconductor)
  • NCP81071 - Dual 5A High Speed Low-Side MOSFET Drivers (ON Semiconductor)
Other Datasheets by onsemi
  • NCP81031 - Low Voltage Synchronous Buck Controller
  • NCP3296 - 40A Stackable Synchronous Buck Regulator
  • NCP346 - Overvoltage Protection
  • NCP51752 - 4.5-A/9-A Isolated Single Channel Gate Driver

Full PDF Text Transcription

Click to expand full text
NCP81022 Dual Output 4 Phase Plus 1 Phase Digital Controller with SVI2 Interface for Desktop and Notebook CPU Applications www.onsemi.com The NCP81022 dual output four plus one phase buck solution is optimized for AMD® SVI2 CPUs. The controller combines true differential voltage sensing, differential inductor DCR current sensing, input voltage feed−forward, and adaptive voltage positioning to provide accurately regulated power for both desktop and notebook applications. The control system is based on Dual−Edge pulse−width modulation (PWM) combined with DCR current sensing providing an ultra fast initial response to dynamic load events and reduced system cost.
