NCP1653A - Continuous Conduction Mode PFC Controller

Product Overview

📥 Download Datasheet

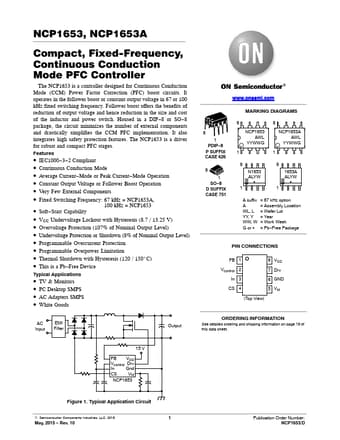

Datasheet preview – NCP1653A

Datasheet Details

Part number NCP1653A
Manufacturer ON Semiconductor
File Size 219.53 KB
Description Continuous Conduction Mode PFC Controller
Datasheet download datasheet NCP1653A Datasheet
Note This datasheet PDF includes multiple part numbers: NCP1653A, NCP1653.
Please refer to the document for exact specifications by model.
Additional preview pages of the NCP1653A datasheet.

Product details

Description

Pin Symbol Name Function 1 FB / SD Feedback / This pin receives a feedback current IFB which is proportional to the PFC circuit output voltage.Shutdown The current is for output regulation, output overvoltage protection (OVP), and output undervoltage protection (UVP).When IFB goes above 107% Iref, OVP is activated and the Drive Output is disabled.When IFB goes below 8% Iref, the device enters a low consumption shutdown mode.
