NCP1653 - Continuous Conduction Mode PFC Controller

Product Overview

ON Semiconductor

Datasheet Details

Part number	NCP1653
Manufacturer	ON Semiconductor
File Size	219.53 KB
Description	Continuous Conduction Mode PFC Controller
Datasheet	NCP1653 Datasheet

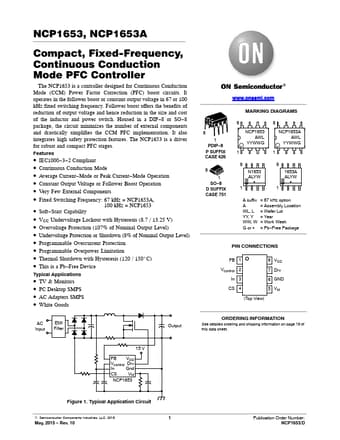

Additional preview pages of the NCP1653 datasheet.

Product details

Description

Pin Symbol Name Function 1 FB / SD Feedback / This pin receives a feedback current IFB which is proportional to the PFC circuit output voltage.Shutdown The current is for output regulation, output overvoltage protection (OVP), and output undervoltage protection (UVP).When IFB goes above 107% Iref, OVP is activated and the Drive Output is disabled.When IFB goes below 8% Iref, the device enters a low consumption shutdown mode.

Features

The NCP1653 is a driver for robust and compact PFC stages. Features.
IEC1000.
3.
2 Compliant.
Continuous Conduction Mode.
Average Current.
Mode or Peak Current.
Mode Operation.
Constant Output Voltage or Follower Boost Operation.
Very Few External Components.
Fixed Switching Frequency: 67 kHz = NCP1653A, Fixed Switching Frequency: 100 kHz = NCP1653.
Soft.
Start Capability.
VCC Undervoltage.
