NCP1031 - Integrated DC-DC Converter

General Description

Pin Name Function 1 GND Ground 2 CT Oscillator Frequency Selection 3 VFB Feedback Input 4 COMP Error Amplifier Compensation 5 OV Line Overvoltage Shutdown 6 UV Line Undervoltage Shutdown 7 VCC Supply Voltage 8 VDRAIN Power Switch and Startup Circuits Description Ground referen

Key Features

  • On Chip High 200 V Power Switch Circuit and Startup Circuit.
  • Internal Startup Regulator with Auxiliary Winding Override.
  • Operation up to 1 MHz.
  • External Frequency Synchronization Capability.
  • Frequency Fold.
  • down Under Fault Conditions.
  • Trimmed ±2% Internal Reference.
  • Line Undervoltage and Overvoltage Detectors.
  • Cycle by Cycle Current Limit Using.

📥 Download Datasheet

Datasheet Details

Part number NCP1031
Manufacturer ON
File Size 407.49 KB
Description Integrated DC-DC Converter
Datasheet download datasheet NCP1031 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NCP103 150mA CMOS Low Dropout Regulator ON Semiconductor
NCP1032 Low Power PWM Controller ON Semiconductor
NCP1034 100V Synchronous PWM Buck Controller ON Semiconductor
NCP100 Sub 1.0V Precision Adjustable Shunt Regulator ON Semiconductor
NCP1000 Integrated Off-Line Switching Regulator ON Semiconductor

Other Datasheets by ON

Part Number Description
NCP1030 Integrated DC-DC Converter
NCP1086 1.5A Adjustable and 3.3V Fixed Output Linear Regulator
NCP1212 Current Mode PWM Controller
NCP1215 Low Cost Variable OFF Time Switched Mode Power Supply Controller
NCP1216 PWM Current-Mode Controller

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

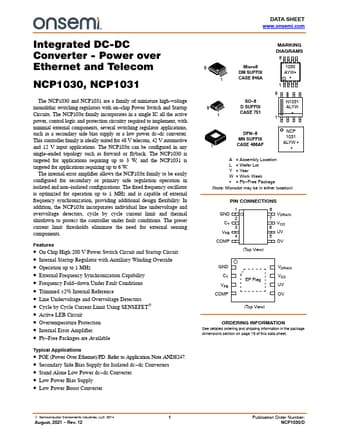

Integrated DC-DC Converter - Power over Ethernet and Telecom NCP1030, NCP1031 The NCP1030 and NCP1031 are a family of miniature high−voltage monolithic switching regulators with on−chip Power Switch and Startup Circuits. The NCP103x family incorporates in a single IC all the active power, control logic and protection circuitry required to implement, with minimal external components, several switching regulator applications, such as a secondary side bias supply or a low power dc−dc converter. This controller family is ideally suited for 48 V telecom, 42 V automotive and 12 V input applications. The NCP103x can be configured in any single−ended topology such as forward or flyback.
