NCP1094, NCP1093 Integrated IEEE 802.3at PoE-PD Interface Controller

NCP1094 Description

NCP1093, NCP1094 Integrated IEEE 802.3at PoE-PD Interface Controller .
The NCP1093 and NCP1094 are members of ON Semiconductor’s high power HIPOt Power over Ethernet Powered Device (PoE. PD) product family and inte.

NCP1094 Features

* Fully Supports IEEE 802.3af/at Specifications
* Programmable Classification Current
* Support Two Event Classification
* Signature
* Adjustable Under Voltage Lock Out (NCP1093 Only)
* Open
* Drain Power Good Indicator
* 120 mA Typical Inr

NCP1094 Applications

* supporting auxiliary supplies. The NCP1093 and NCP1094 are fabricated in a robust high voltage process and integrate a rugged vertical N
* channel DMOS suitable for the most demanding environments and capable of withstanding harsh environments such as hot swap and cable ESD events. The NCP1093

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: NCP1094, NCP1093. Please refer to the document for exact specifications by model.

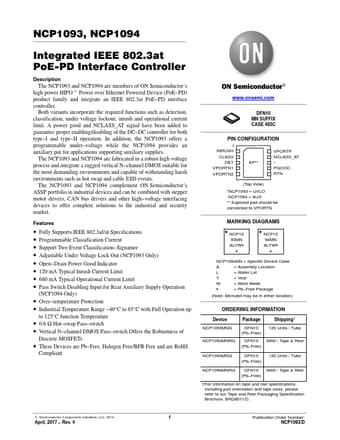

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NCP1094, NCP1093
Manufacturer
ON Semiconductor ↗
File Size
121.96 KB
Datasheet
NCP1093-ONSemiconductor.pdf
Description
Integrated IEEE 802.3at PoE-PD Interface Controller
Note
This datasheet PDF includes multiple part numbers: NCP1094, NCP1093.
Please refer to the document for exact specifications by model.
