NCP1092, NCP1090 Integrated IEEE 802.3af PoE-PD Interface Controller

NCP1092 Description

NCP1090, NCP1091, NCP1092 Integrated IEEE 802.3af PoE-PD Interface Controller .
The NCP1090, NCP1091 and NCP1092 are members of ON Semiconductor’s high power HIPOt Power over Ethernet Powered Device (PoE. PD) product family.

NCP1092 Features

* Fully Supports IEEE 802.3af Specifications
* Programmable Classification Current
* Adjustable Under Voltage Lock Out (NCP1091 Only)
* Open
* Drain Power Good Indicator
* 130 mA Inrush Current Limit
* 500 mA Operational Current Limit
* P

NCP1092 Applications

* supporting auxiliary supplies. The NCP1090, NCP1091 and NCP1092 are fabricated in a robust high voltage process and integrates a rugged vertical N
* channel DMOS suitable for the most demanding environments and capable of withstanding harsh environments such as hot swap and cable ESD events. T

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: NCP1092, NCP1090. Please refer to the document for exact specifications by model.

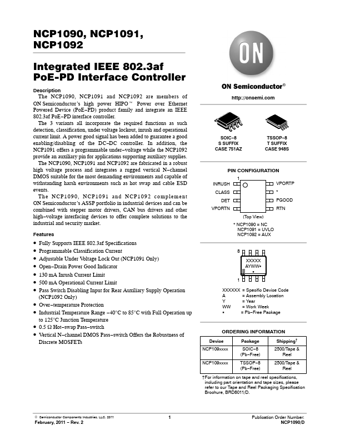

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NCP1092, NCP1090
Manufacturer
ON Semiconductor ↗
File Size
170.47 KB
Datasheet
NCP1090-ONSemiconductor.pdf
Description
Integrated IEEE 802.3af PoE-PD Interface Controller
Note
This datasheet PDF includes multiple part numbers: NCP1092, NCP1090.
Please refer to the document for exact specifications by model.
