NC7WP14 TinyLogic ULP-A Dual Inverter

NC7WP14 Description

TinyLogic ULP-A Dual Inverter with Schmitt-Trigger Input NC7WP14 The NC7WP14 is a dual inverter with Schmitt *trigger input in tiny footprint p.

NC7WP14 Features

* Designed for 0.9 V to 3.6 V VCC Operation
* 3.0 ns tPD at 3.3 V (Typ)
* Inputs/Outputs Over
* Voltage Tolerant up to 3.6 V
* IOFF Supports Partial Power Down Protection
* Source/Sink 2.6 mA at 3.3 V
* Available in SC
* 88 and MicroPak™ Pa

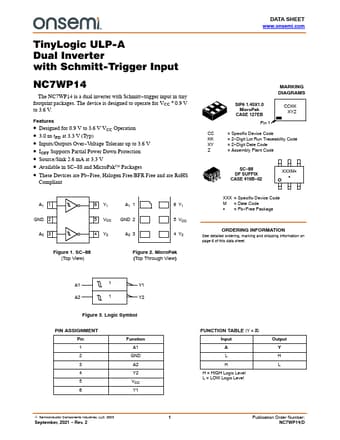

📥 Download Datasheet
