NC7WB66 - TinyLogic. Low Voltage UHS Dual SPST Normally Open Bus Switch

Description

The FSA266 or NC7WB66 is an ultra high-speed (UHS) dual single-pole/single-throw (SPST) analog switch or 2-bit bus switch.

The device is fabricated with advanced sub-micron CMOS technology to achieve high speed enable and disable times and low On Resistance over a broad VCC range.

Features

  • O Useful in both analog and digital.

📥 Download Datasheet

Datasheet Details

Part number NC7WB66
Manufacturer Fairchild (onsemi)
File Size 232.71 KB
Description TinyLogic. Low Voltage UHS Dual SPST Normally Open Bus Switch
Datasheet download datasheet NC7WB66 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NC7WP04 TinyLogic ULP Dual Inverter Fairchild Semiconductor
NC7WP08 TinyLogic ULP-A Dual 2-Input AND Gate ON Semiconductor
NC7WP14 TinyLogic ULP-A Dual Inverter ON Semiconductor
NC7WV04 TinyLogic ULP-A Dual Inverter ON Semiconductor
NC7WV07 TinyLogic ULP-A Dual Buffer ON Semiconductor

Other Datasheets by Fairchild (onsemi)

Part Number Description
NC7WB3125 2-Bit Low Power Bus Switch
NC7WB3306 TinyLogic UHS 2-Bit Low Power Bus Switch
NC7WBD3125 UHS 2-Bit Low Power Bus Switch
NC7WBD3306 UHS 2-Bit Low Power Bus Switch
NC7WP02 ULP Dual 2-Input NOR Gate

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

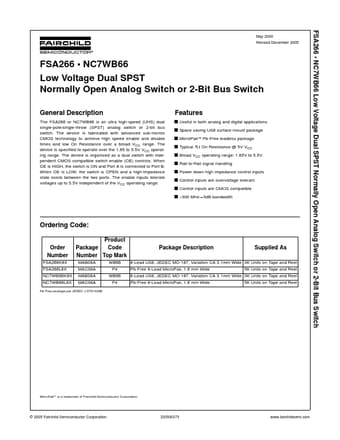

FSA266 • NC7WB66 Low Voltage Dual SPST Normally Open Analog Switch or 2-Bit Bus Switch May 2000 Revised December 2005 FSA266 • NC7WB66 Low Voltage Dual SPST Normally Open Analog Switch or 2-Bit Bus Switch General Description The FSA266 or NC7WB66 is an ultra high-speed (UHS) dual single-pole/single-throw (SPST) analog switch or 2-bit bus switch. The device is fabricated with advanced sub-micron CMOS technology to achieve high speed enable and disable times and low On Resistance over a broad VCC range. The device is specified to operate over the 1.65 to 5.5V VCC operating range. The device is organized as a dual switch with independent CMOS compatible switch enable (OE) controls. When OE is HIGH, the switch is ON and Port A is connected to Port B.
