NC7WBD3125 - UHS 2-Bit Low Power Bus Switch

Description

The NC7WBD3125 is a 2-bit ultra high-speed CMOS FET bus switch with enhanced level shifting circuitry and with TTL-compatible active LOW control inputs.

Features

  • s Space saving US8 surface mount package s MicroPak leadless package s Typical 3Ω switch resistance at 5.0V VCC , VIN = 0V s Level shift facilitates 5V to 3.3V interfacing s Minimal propagation delay through the switch s Power down high impedance input/output s Zero bounce in flow through mode s TTL compatible active LOW control inputs s Control inputs are overvoltage tolerant s Bus switch replacement for x125 logic part Ordering Code: Package Order Number Package Code WB5D T9 Package Descript.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NC7WP04 TinyLogic ULP Dual Inverter Fairchild Semiconductor
NC7WP08 TinyLogic ULP-A Dual 2-Input AND Gate ON Semiconductor
NC7WP14 TinyLogic ULP-A Dual Inverter ON Semiconductor
NC7WV04 TinyLogic ULP-A Dual Inverter ON Semiconductor
NC7WV07 TinyLogic ULP-A Dual Buffer ON Semiconductor

Other Datasheets by Fairchild (onsemi)

Part Number Description
NC7WBD3306 UHS 2-Bit Low Power Bus Switch
NC7WB3125 2-Bit Low Power Bus Switch
NC7WB3306 TinyLogic UHS 2-Bit Low Power Bus Switch
NC7WB66 TinyLogic. Low Voltage UHS Dual SPST Normally Open Bus Switch
NC7WP02 ULP Dual 2-Input NOR Gate

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

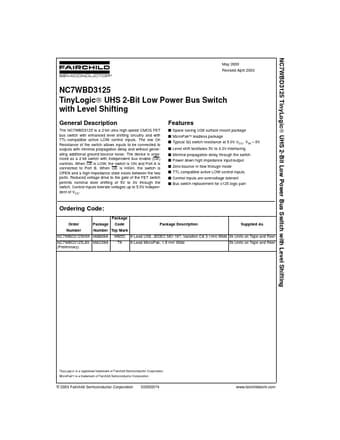

NC7WBD3125 TinyLogic UHS 2-Bit Low Power Bus Switch with Level Shifting May 2000 Revised April 2003 NC7WBD3125 TinyLogic UHS 2-Bit Low Power Bus Switch with Level Shifting General Description The NC7WBD3125 is a 2-bit ultra high-speed CMOS FET bus switch with enhanced level shifting circuitry and with TTL-compatible active LOW control inputs. The low On Resistance of the switch allows inputs to be connected to outputs with minimal propagation delay and without generating additional ground bounce noise. The device is organized as a 2-bit switch with independent bus enable (OE) controls. When OE is LOW, the switch is ON and Port A is connected to Port B. When OE is HIGH, the switch is OPEN and a high-impedance state exists between the two ports.
