MT9V136 - 1/4-Inch Color CMOS NTSC/PAL Digital Image SOC

ON Semiconductor

The MT9V136 by ON Semiconductor is a 1/4-Inch Color CMOS NTSC/PAL Digital Image SOC. Below is the official datasheet preview.

📥 Download Datasheet

MT9V136 1/4-Inch Color CMOS NTSC/PAL Digital Image SOC by ON Semiconductor - Datasheet Preview — Official preview page of the **MT9V136** 1/4-Inch Color CMOS NTSC/PAL Digital Image SOC datasheet (ON Semiconductor).

Datasheet Details

Part number	MT9V136
Manufacturer	ON Semiconductor
File Size	1.70 MB
Description	1/4-Inch Color CMOS NTSC/PAL Digital Image SOC
Datasheet	MT9V136-ONSemiconductor.pdf

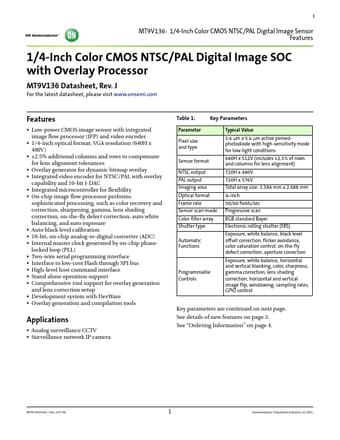

Additional preview pages of the MT9V136 datasheet.

MT9V136 Product details

Description

Color VGA 1/4” SOC, CLCC Package Color VGA 1/4” SOC Color VGA 1/4”SOC Orderable Product Attribute Description Dry Pack without Protective Film Die Sales, 200m Thickness Wafer Sales, 750m Thickness See the ON Semiconductor Device Nomenclature document (TND310/D) for a full description of the naming convention used for image sensors.For reference documentation, including information on evaluation kits, please visit our web site at www.onsemi.com.MT9V136 DS Rev.J Pub.6/15 EN 4 ©Semiconduc

Features

1/4-Inch Color CMOS NTSC/PAL Digital Image SOC with Overlay Processor MT9V136 Datasheet, Rev. J For the latest datasheet, please visit www. onsemi. com Features.
Low-power CMOS image sensor with integrated image flow processor (IFP) and video encoder.
1/4-inch optical format, VGA resolution (640H x 480V ).
±2.5% additional columns and rows to compensate for lens alignment tolerances.
Overlay generator for dynamic bitmap overlay.
Integrated video encode.
