MT9V138 - 1/4-Inch Color CMOS NTSC/PAL Digital Image SOC

Description

MT9V138 DS Rev.

D Pub.

3 ©Semiconductor Components Industries, LLC,2015.

Features

  • 1/4-Inch Color CMOS NTSC/PAL Digital Image SOC with Overlay Processor MT9V138 Datasheet, Rev. D For the latest datasheet, please visit www. onsemi. com Features.
  • Low-power CMOS image sensor with integrated image flow processor (IFP) and video encoder.
  • 1/4-inch optical format, VGA resolution (640H x 480V ).
  • ±2.5% additional columns and rows to compensate for lens alignment tolerances.
  • Overlay generator for dynamic bitmap overlay.
  • Integrated video encode.

📥 Download Datasheet

Datasheet Details

Part number MT9V138
Manufacturer onsemi
File Size 1.67 MB
Description 1/4-Inch Color CMOS NTSC/PAL Digital Image SOC
Datasheet download datasheet MT9V138 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MT9V131 1/4-Inch SOC VGA CMOS Digital Image Sensor Aptina Imaging Corporation
MT9V135 1/4-Inch System-On-A-Chip (SOC) VGA NTSC and PAL CMOS Digital Image Sensor Aptina Imaging Corporation
MT9V139 1/4-Inch Color NTSC/PAL Digital Image SOC Aptina Imaging Corporation
MT9V111 1/4-Inch SOC VGA CMOS Active-Pixel Digital Image Sensor Micron
MT9V111 1/4-Inch SOC VGA CMOS Active-Pixel Digital Image Sensor Aptina Imaging Corporation

Other Datasheets by onsemi

Part Number Description
MT9V131 1/4-Inch SOC VGA CMOS Digital Image Sensor
MT9V136 1/4-Inch Color CMOS NTSC/PAL Digital Image SOC
MT9V137 1/4-Inch Color CMOS NTSC/PAL Digital Image SOC
MT9V111 1/4-Inch SOC VGA CMOS Active-Pixel Digital Image Sensor
MT9V115 1/13-Inch System-On-A-Chip (SOC) CMOS Digital Image Sensor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

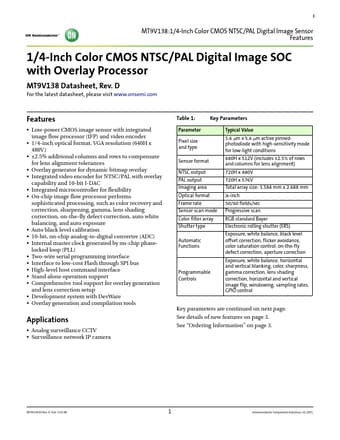

‡ MT9V138:1/4-Inch Color CMOS NTSC/PAL Digital Image Sensor Features 1/4-Inch Color CMOS NTSC/PAL Digital Image SOC with Overlay Processor MT9V138 Datasheet, Rev. D For the latest datasheet, please visit www.onsemi.com Features • Low-power CMOS image sensor with integrated image flow processor (IFP) and video encoder • 1/4-inch optical format, VGA resolution (640H x 480V ) • ±2.
