MT9V124 - 1/13-Inch System-On-A-Chip (SOC) CMOS Digital Image Sensor

Description

ON Semiconductor's MT9V124 is a 1/13-inch CMOS digital image sensor with an active-pixel array of 648H x 488V.

It includes sophisticated camera functions such as auto exposure control, auto white balance, black level control, flicker detection and avoidance, and defect correction.

Features

  • 1/13-Inch System-On-A-Chip (SOC) CMOS Digital Image Sensor MT9V124 Datasheet, Rev. C For the latest datasheet, please visit www. onsemi. com Features.
  • Superior low-light performance.
  • Ultra-low-power.
  • VGA video at 30fps.
  • Internal master clock generated by on-chip phase locked loop (PLL) oscillator.
  • Electronic rolling shutter (ERS), progressive scan.
  • Integrated image flow processor (IFP) for single-die camera module.
  • One-time programmab.

📥 Download Datasheet

Datasheet Details

Part number MT9V124
Manufacturer onsemi
File Size 896.19 KB
Description 1/13-Inch System-On-A-Chip (SOC) CMOS Digital Image Sensor
Datasheet download datasheet MT9V124 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MT9V125 1/4-Inch System-On-A-Chip (SOC) VGA NTSC and PAL CMOS Digital Image Sensor Aptina Imaging Corporation
MT9V111 1/4-Inch SOC VGA CMOS Active-Pixel Digital Image Sensor Micron
MT9V111 1/4-Inch SOC VGA CMOS Active-Pixel Digital Image Sensor Aptina Imaging Corporation
MT9V112 SOC VGA DIGITAL IMAGE SENSOR Micron
MT9V112 1/6-Inch SOC VGA CMOS Digital Image Sensor Aptina Imaging Corporation

Other Datasheets by onsemi

Part Number Description
MT9V125 1/4-Inch System-On-A-Chip (SOC) VGA NTSC and PAL CMOS Digital Image Sensor
MT9V111 1/4-Inch SOC VGA CMOS Active-Pixel Digital Image Sensor
MT9V115 1/13-Inch System-On-A-Chip (SOC) CMOS Digital Image Sensor
MT9V131 1/4-Inch SOC VGA CMOS Digital Image Sensor
MT9V136 1/4-Inch Color CMOS NTSC/PAL Digital Image SOC

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

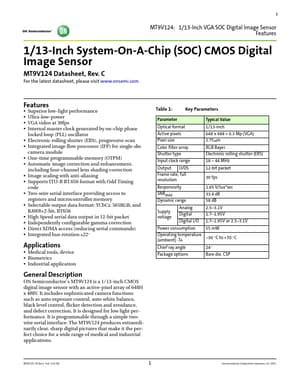

‡ MT9V124: 1/13-Inch VGA SOC Digital Image Sensor Features 1/13-Inch System-On-A-Chip (SOC) CMOS Digital Image Sensor MT9V124 Datasheet, Rev. C For the latest datasheet, please visit www.onsemi.com Features • Superior low-light performance • Ultra-low-power • VGA video at 30fps • Internal master clock generated by on-chip phase locked loop (PLL) oscillator • Electronic rolling shutter (ERS), progressive scan • Integrated image flow processor (IFP) for single-die camera module • One-time programmable memory (OTPM) • Automatic image correction and enhancement, including four-channel lens shading correction • Image scaling with anti-aliasing • Supports ITU-R BT.
