MOC8106M - Phototransistor Optocouplers

Name: MOC8106M
SKU: MOC8106M-1502037

ON Semiconductor

📥 Download Datasheet

MOC8106M Datasheet Preview — Preview of MOC8106M PDF

Datasheet Details

Part number	MOC8106M
Manufacturer	ON Semiconductor
File Size	367.63 KB
Description	Phototransistor Optocouplers
Datasheet	MOC8106M-ONSemiconductor.pdf

MOC8106M Product details

Description

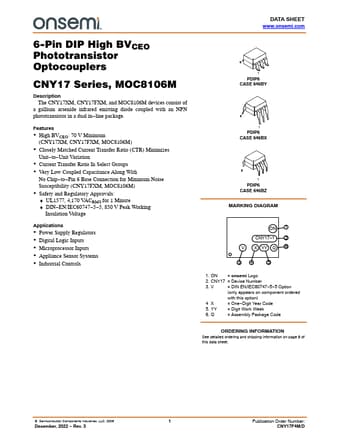

The CNY17XM, CNY17FXM, and MOC8106M devices consist of a gallium arsenide infrared emitting diode coupled with an NPN phototransistor in a dual in line package.

Features

High BVCEO: 70 V Minimum (CNY17XM, CNY17FXM, MOC8106M).
Closely Matched Current Transfer Ratio (CTR) Minimizes Unit.
to.
Unit Variation.
Current Transfer Ratio In Select Groups.
Very Low Coupled Capacitance Along With No Chip.
to.
Pin 6 Base Connection for Minimum Noise Susceptibility (CNY17FXM, MOC8106M).
Safety and Regulatory Approvals:  UL1577, 4,170 VACRMS for 1 Minute  DIN.
EN/IEC60747.
5.
5, 850 V Peak Working Ins.
