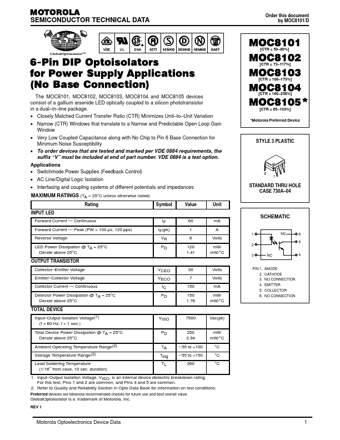

MOTOROLA
SEMICONDUCTOR TECHNICAL DATA
Order this document by MOC8101/D
MOC8101
GlobalOptoisolator™ [CTR = 50–80%]
6-Pin DIP Optoisolators for Power Supply Applications (No Base Connection)
The MOC8101, MOC8102, MOC8103, MOC8104 and MOC8105 devices consist of a gallium arsenide LED optically coupled to a silicon phototransistor in a dual–in–line package. • Closely Matched Current Transfer Ratio (CTR) Minimizes Unit–to–Unit Variation • Narrow (CTR) Windows that translate to a Narrow and Predictable Open Loop Gain Window • Very Low Coupled Capacitance along with No Chip to Pin 6 Base Connection for Minimum Noise Susceptibility • To order devices that are tested and marked per VDE 0884 requirements, the suffix “V” must be included at end of part number. VDE 0884 is a test option.
