MOC8101X - PHOTOTRANSISTOR

Name: MOC8101X
SKU: MOC8101X-568178

ISOCOM COMPONENTS

📥 Download Datasheet

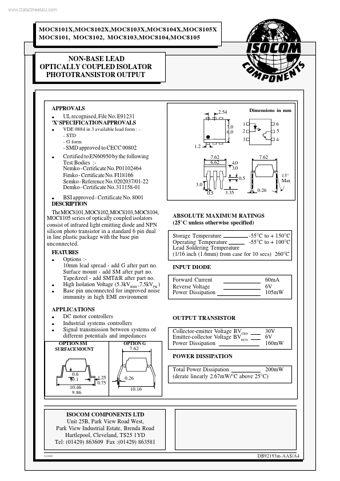

MOC8101X Datasheet Preview — Preview of MOC8101X PDF

Datasheet Details

Part number	MOC8101X
Manufacturer	ISOCOM COMPONENTS
File Size	107.17 KB
Description	PHOTOTRANSISTOR
Datasheet	MOC8101X_ISOCOMCOMPONENTS.pdf

MOC8101X Product details

Description

The MOC8101, MOC8102, MOC8103, MOC8104, MOC8105 series of optically coupled isolators consist of infrared light emitting diode and NPN silicon photo transistor in a standard 6 pin dual in line plastic package with the base pin unconnected.

Features

Options :10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. l High Isolation Voltage (5.3kVRMS ,7.5kVPK ) l Base pin unconnected for improved noise immunity in high EMI environment l.
