MC100E158 - 5-BIT 2:1 MULTIPLEXER

ON Semiconductor

The MC100E158 by ON Semiconductor is a 5-BIT 2:1 MULTIPLEXER. Below is the official datasheet preview.

📥 Download Datasheet

MC100E158 5-BIT 2:1 MULTIPLEXER by ON Semiconductor - Datasheet Preview — Official preview page of the **MC100E158** 5-BIT 2:1 MULTIPLEXER datasheet (ON Semiconductor).

Datasheet Details

Part number	MC100E158
Manufacturer	ON Semiconductor
File Size	141.05 KB
Description	5-BIT 2:1 MULTIPLEXER
Datasheet	MC100E158_ONSemiconductor.pdf

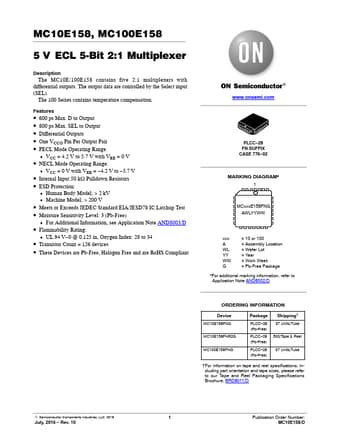

Additional preview pages of the MC100E158 datasheet.

MC100E158 Product details

Description

The MC10E/100E158 contains five 2:1 multiplexers with differential outputs.The output data are controlled by the Select input (SEL).The 100 Series contains temperature compensation.

Features

600 ps Max. D to Output.
800 ps Max. SEL to Output.
Differential Outputs.
One VCCO Pin Per Output Pair.
PECL Mode Operating Range:.
VCC = 4.2 V to 5.7 V with VEE = 0 V.
NECL Mode Operating Range:.
VCC = 0 V with VEE =.
4.2 V to.
5.7 V.
Internal Input 50 kW Pulldown Resistors.
ESD Protection:.
Human Body Model; > 2 kV.
Machine Model; > 200 V.
Meets or Exceeds JEDEC.
