MC100E155 - 5VECL 6-Bit 2:1 Mux-Latch

ON Semiconductor

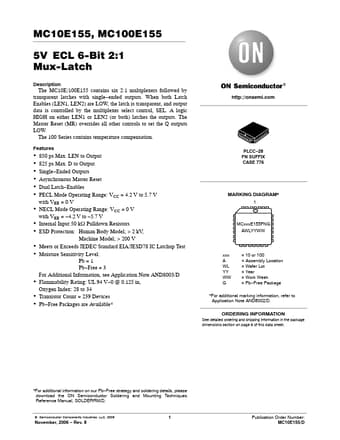

The MC100E155 by ON Semiconductor is a 5VECL 6-Bit 2:1 Mux-Latch. Below is the official datasheet preview.

📥 Download Datasheet

MC100E155 5VECL 6-Bit 2:1 Mux-Latch by ON Semiconductor - Datasheet Preview — Official preview page of the MC100E155 5VECL 6-Bit 2:1 Mux-Latch datasheet (ON Semiconductor).

Datasheet Details

Part number	MC100E155
Manufacturer	ON Semiconductor
File Size	121.30 KB
Description	5VECL 6-Bit 2:1 Mux-Latch
Datasheet	MC100E155_ONSemiconductor.pdf
Additional preview pages of the MC100E155 datasheet.

MC100E155 Product details

Description

The MC10E/100E155 contains six 2:1 multiplexers followed by transparent latches with single ended outputs.

Features

850 ps Max. LEN to Output.
825 ps Max. D to Output.
Single.
Ended Outputs.
Asynchronous Master Reset.
Dual Latch.
Enables.
PECL Mode Operating Range: VCC = 4.2 V to 5.7 V with VEE = 0 V.
NECL Mode Operating Range: VCC = 0 V with VEE =.
4.2 V to.
5.7 V.
Internal Input 50 kW Pulldown Resistors.
ESD Protection: Human Body Model; > 2 kV, Machine Model; > 200 V.
Meets or Exceeds JE.
