MC100E151 - 6-BIT D REGISTER

ON Semiconductor

The MC100E151 by ON Semiconductor is a 6-BIT D REGISTER. Below is the official datasheet preview.

📥 Download Datasheet

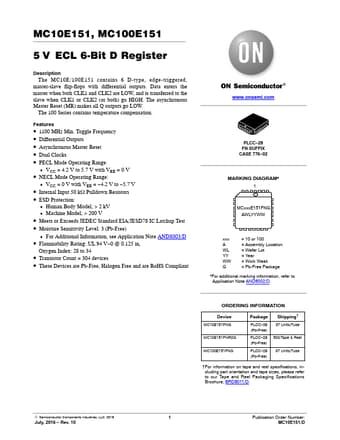

MC100E151 6-BIT D REGISTER by ON Semiconductor - Datasheet Preview — Official preview page of the **MC100E151** 6-BIT D REGISTER datasheet (ON Semiconductor).

Datasheet Details

Part number	MC100E151
Manufacturer	ON Semiconductor
File Size	141.41 KB
Description	6-BIT D REGISTER
Datasheet	MC100E151_ONSemiconductor.pdf
Additional preview pages of the MC100E151 datasheet.

MC100E151 Product details

Description

The MC10E/100E151 contains 6 D-type, edge-triggered, master-slave flip-flops with differential outputs.Data enters the master when both CLK1 and CLK2 are LOW, and is transferred to the slave when CLK1 or CLK2 (or both) go HIGH.The asynchronous Master Reset (MR) makes all Q outputs go LOW.The 100 Series contains temperature compensation.

Features

1100 MHz Min. Toggle Frequency.
Differential Outputs.
Asynchronous Master Reset.
Dual Clocks.
PECL Mode Operating Range:.
VCC = 4.2 V to 5.7 V with VEE = 0 V.
NECL Mode Operating Range:.
VCC = 0 V with VEE =.
4.2 V to.
5.7 V.
Internal Input 50 kW Pulldown Resistors.
ESD Protection:.
Human Body Model; > 2 kV.
Machine Model; > 200 V.
Meets or Exceeds JEDEC Standard.
