MAX6502, MAX6501 - Ultra Small Temperature Switch

ON Semiconductor

The MAX6502 by ON Semiconductor is a Ultra Small Temperature Switch. Below is the official datasheet preview.

📥 Download Datasheet

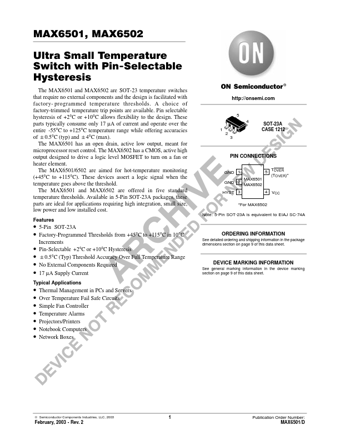

MAX6502 Ultra Small Temperature Switch by ON Semiconductor - Datasheet Preview — Official preview page of the **MAX6502** Ultra Small Temperature Switch datasheet (ON Semiconductor).

Datasheet Details

Part number	MAX6502, MAX6501
Manufacturer	ON Semiconductor
File Size	120.20 KB
Description	Ultra Small Temperature Switch
Datasheet	MAX6501-ONSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: MAX6502, MAX6501. Please refer to the document for exact specifications by model.
Additional preview pages of the MAX6502 datasheet.

MAX6502 Product details

Description

MAX6501 MAX6502 1,2 1,2 Name GND 3 3 HYST 4 4 VCC 5 - TOVER - 5 TOVER Description Ground.Ground both pins together close to the chip.Pin 2 provides the lowest thermal resistance to the die.Hysteresis Input.Connect HYST to GND for +2°C hysteresis, or connect to VCC for +10°C hysteresis.Supply Input (+2.7 V to +5.5 V).Recommend 100 pF or greater Coupling capacitor from VCC to GND.Open-Drain, Active-Low Output.TOVER goes low when the die temperature exceeds the factory-programmed tempe

Features

5-Pin SOT-23A.
Factory-Programmed Thresholds from +45°C to +115°C in 10°C Increments.
Pin-Selectable +2°C or +10°C Hysteresis.
"0.5°C (Typ) Threshold Accuracy Over Full Temperature Range.
No External Components Required.
17 µA Supply Current Typical.
