MAX1617 - SMBus Temperature Sensor with Internal and External Diode Input

ON Semiconductor

The MAX1617 by ON Semiconductor is a SMBus Temperature Sensor with Internal and External Diode Input. Below is the official datasheet preview.

📥 Download Datasheet

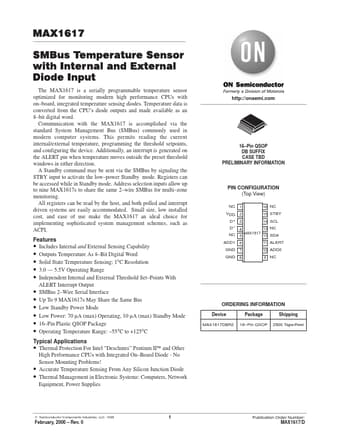

MAX1617 SMBus Temperature Sensor with Internal and External Diode Input by ON Semiconductor - Datasheet Preview — Official preview page of the **MAX1617** SMBus Temperature Sensor with Internal and External Diode Input datasheet (ON Semiconductor).

Datasheet Details

Part number	MAX1617
Manufacturer	ON Semiconductor
File Size	176.92 KB
Description	SMBus Temperature Sensor with Internal and External Diode Input
Datasheet	MAX1617_ONSemiconductor.pdf
Additional preview pages of the MAX1617 datasheet.

MAX1617 Product details

Description

Power Power Supply Input Bi Directional Bi Directional Input Current Source and A/D Positive Input Current Sink and A/D Negative Input 6, 10 7, 8 11 ADD[1:0] GND Address Select Pins (See Address Decode Table) System Ground Power ALERT SDA SCL Output SMBus Interrupt (SMBALERT) or Comparator Output SMBus Serial Data 12 14 15 Bi Directional Input Input SMBus Serial Clock Standby Enable Not Connected STBY NC 1, 5, 9, 13, 16 PIN DESCRIPTION PIN DESCRIPTION (NOTE: A

Features

Includes Internal and External Sensing Capability Outputs Temperature As 8.
Bit Digital Word Solid State Temperature Sensing; 1°C Resolution 3.0.
5.5V Operating Range Independent Internal and External Threshold Set.
Points With ALERT Interrupt Output.
SMBus 2.
Wire Serial Interface.
Up To 9 MAX1617s May Share the Same Bus.
Low Standby Power Mode.
Low Power: 70 µA (max) Operating, 10 µA (max) Standby Mode.
16.
Pin P.
