MAX6504 - Low-Cost / +2.7V to +5.5V / Micropower Temperature Switches

Maxim

The MAX6504 by Maxim is a Low-Cost / +2.7V to +5.5V / Micropower Temperature Switches. Below is the official datasheet preview.

📥 Download Datasheet

MAX6504 Low-Cost / +2.7V to +5.5V / Micropower Temperature Switches by Maxim - Datasheet Preview — Official preview page of the **MAX6504** Low-Cost / +2.7V to +5.5V / Micropower Temperature Switches datasheet (Maxim).

Datasheet Details

Part number	MAX6504
Manufacturer	Maxim
File Size	258.42 KB
Description	Low-Cost / +2.7V to +5.5V / Micropower Temperature Switches
Datasheet	MAX6504_MaximIntegratedProducts.pdf

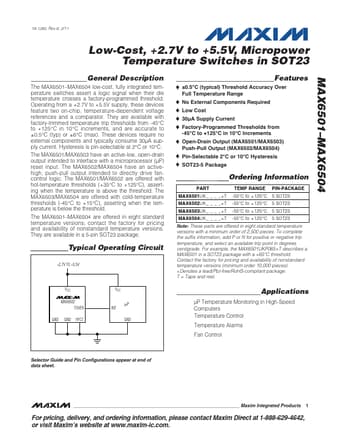

Additional preview pages of the MAX6504 datasheet.

MAX6504 Product details

Description

The MAX6501 MAX6504 low-cost, fully integrated temperature switches assert a logic signal when their die temperature crosses a factory-programmed threshold.

Features

o ±0.5°C (typical) Threshold Accuracy Over Full Temperature Range o No External Components Required o Low Cost o 30µA Supply Current o Factory-Programmed Thresholds from -45°C to +115°C in 10°C Increments o Open-Drain Output (MAX6501/MAX6503) Push-Pull Output (MAX6502/MAX6504) o Pin-Selectable +2°C or +10°C Hysteresis o SOT23-5 and TO220-7 Packages MAX6501.
MAX6504 † Ordering Information PART.
MAX6501UK_ _ _ _-T MAX6501CM_ _ _ _-T MAX6502UK_ _ _ _-T MAX6502CM_ _ _ _-T MAX6503UK_ _ _.
