FSQ0565RS - Green-Mode Power Switch

Name: FSQ0565RS
SKU: FSQ0565RS-1440580

ON Semiconductor

📥 Download Datasheet

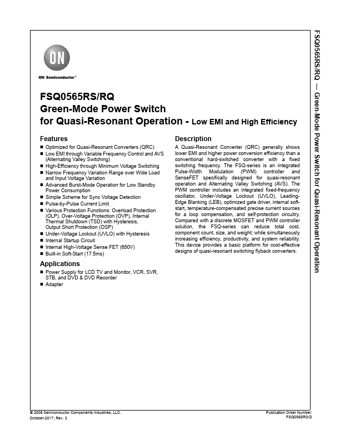

FSQ0565RS Datasheet Preview — Preview of FSQ0565RS PDF

Datasheet Details

Part number	FSQ0565RS
Manufacturer	ON Semiconductor
File Size	2.75 MB
Description	Green-Mode Power Switch
Datasheet	FSQ0565RS-ONSemiconductor.pdf

FSQ0565RS Product details

Description

A Quasi-Resonant Converter (QRC) generally shows lower EMI and higher power conversion efficiency than a conventional hard-switched converter with a fixed switching frequency.

Features

! Optimized for Quasi-Resonant Converters (QRC) ! Low EMI through Variable Frequency Control and AVS (Alternating Valley Switching) ! High-Efficiency through Minimum Voltage Switching ! Narrow Frequency Variation Range over Wide Load and Input Voltage Variation ! Advanced Burst-Mode Operation for Low Standby Power Consumption ! Simple Scheme for Sync Voltage Detection ! Pulse-by-Pulse Current Limit ! Various Protection Functions: Overload Protection (OLP), Over-Voltage Protection (OVP), Internal.
