FSQ0565RQ, FSQ0565RS - Green-Mode Power Switch

Name: FSQ0565RQ
SKU: FSQ0565RQ-1440581

ON Semiconductor

📥 Download Datasheet

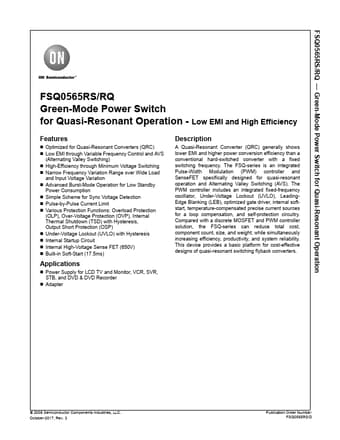

FSQ0565RQ Datasheet Preview — This datasheet PDF includes multiple part numbers: FSQ0565RQ, FSQ0565RS. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	FSQ0565RQ, FSQ0565RS
Manufacturer	ON Semiconductor
File Size	2.75 MB
Description	Green-Mode Power Switch
Datasheet	FSQ0565RS-ONSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: FSQ0565RQ, FSQ0565RS. Please refer to the document for exact specifications by model.

FSQ0565RQ Product details

Description

A Quasi-Resonant Converter (QRC) generally shows lower EMI and higher power conversion efficiency than a conventional hard-switched converter with a fixed switching frequency.

Features

! Optimized for Quasi-Resonant Converters (QRC) ! Low EMI through Variable Frequency Control and AVS (Alternating Valley Switching) ! High-Efficiency through Minimum Voltage Switching ! Narrow Frequency Variation Range over Wide Load and Input Voltage Variation ! Advanced Burst-Mode Operation for Low Standby Power Consumption ! Simple Scheme for Sync Voltage Detection ! Pulse-by-Pulse Current Limit ! Various Protection Functions: Overload Protection (OLP), Over-Voltage Protection (OVP), Internal.
