FSQ05A04 - SBD

Features

  • Similar to TO-220AC Case.
  • Fully Molded Isolation.
  • Low Forward Voltage Drop.
  • Low Power Loss,High Efficiency.
  • High Surge Capability.
  • Tj=150 °C operation OULINE.

📥 Download Datasheet

Datasheet preview – FSQ05A04

📁 Similar Datasheet

  • FSQ0565R - (FSQ0565R / FSQ0765R) Green-Mode Fairchild Power Switch (Fairchild Semiconductor)
  • FSQ0565RQ - Green-Mode Power Switch (ON Semiconductor)
  • FSQ0565RQ - Green-Mode Fairchild Power Switch (Fairchild Semiconductor)
  • FSQ0565RS - Green-Mode Power Switch (ON Semiconductor)
  • FSQ0565RS - Green-Mode Fairchild Power Switch (Fairchild Semiconductor)
  • FSQ0165 - Green Mode Fairchild Power Switch (Fairchild Semiconductor)
  • FSQ0165 - Green Mode Power Switch (ON Semiconductor)
  • FSQ0165RN - (FSQ0x65RN) Green Mode Fairchild Power Switch (Fairchild Semiconductor)
  • FSQ0170RNA - Green Mode Fairchild Power Switch (Fairchild Semiconductor)
  • FSQ0265 - Green Mode Fairchild Power Switch (Fairchild Semiconductor)
Other Datasheets by Nihon Inter Electronics

Full PDF Text Transcription

Click to expand full text

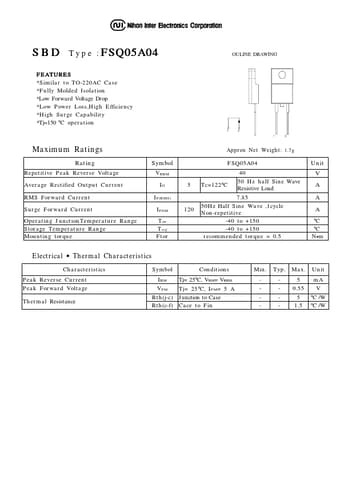

S B D T y p e : FSQ05A04 FEATURES *Similar to TO-220AC Case *Fully Molded Isolation *Low Forward Voltage Drop *Low Power Loss,High Efficiency *High Surge Capability *Tj=150 °C operation OULINE DRAWING Maximum Ratings Rating Repetitive Peak Reverse Voltage Average Rectified Output Current RMS Forward Current Surge Forward Current Operating JunctionTemperature Range Storage Temperature Range Mounting torque Symbol VRRM IO IF(RMS) IFSM Tjw Tstg Ftor Approx Net Weight: 1.7g FSQ05A04 40 5 Tc=122°C 50 Hz half Sine Wave Resistive Load 7.85 120 50Hz Half Sine Wave ,1cycle Non-repetitive -40 to +150 -40 to +150 recommended torque = 0.
