FPF2702, FPF2700 AccuPower 0.4A ~ 2A Adjustable Over-Current Protection Load Switches

FPF2702 Description

DATA SHEET www.onsemi.com AccuPower 0.4~2 A Adjustable Over-Current Protection Load Switches FPF2700, FPF2701, FPF2702 .
The AccuPower FPF270X series is a family of current. limit load switches that provide full protection to systems and loads from excess current.

FPF2702 Features

* 2.8 V to 36 V Input Voltage Range
* Typical RDS(ON) = 88 mW
* 0.4 A to 2 A Adjustable Current Limit (Min. )
* Slew Rate Controlled
* ESD Protected, Above 2000 V HBM
* Thermal Shutdown
* Active LOW Enable
* UVLO Protection
* Pow

FPF2702 Applications

* where external fault management coordinates the overload response with the FPF2702. The FPF270X is available in a space
* saving, Lead and Halogen free, 8

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FPF2702, FPF2700. Please refer to the document for exact specifications by model.

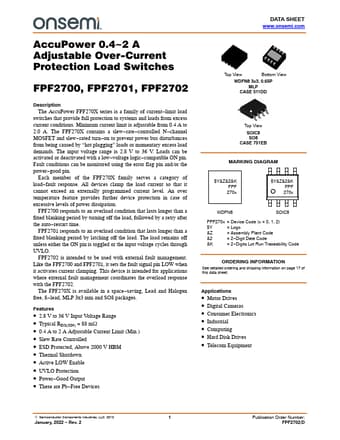

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FPF2702, FPF2700
Manufacturer
ON Semiconductor ↗
File Size
1.12 MB
Datasheet
FPF2700-ONSemiconductor.pdf
Description
AccuPower 0.4A ~ 2A Adjustable Over-Current Protection Load Switches
Note
This datasheet PDF includes multiple part numbers: FPF2702, FPF2700.
Please refer to the document for exact specifications by model.
