FPF2165R - Full Function Load Switch

ON Semiconductor

The FPF2165R by ON Semiconductor is a Full Function Load Switch. Below is the official datasheet preview.

📥 Download Datasheet

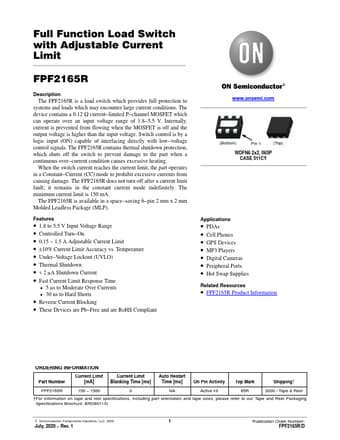

FPF2165R Full Function Load Switch by ON Semiconductor - Datasheet Preview — Official preview page of the **FPF2165R** Full Function Load Switch datasheet (ON Semiconductor).

Datasheet Details

Part number	FPF2165R
Manufacturer	ON Semiconductor
File Size	428.11 KB
Description	Full Function Load Switch
Datasheet	FPF2165R-ONSemiconductor.pdf
Additional preview pages of the FPF2165R datasheet.

FPF2165R Product details

Description

The FPF2165R is a load switch which provides full protection to systems and loads which may encounter large current conditions.The device contains a 0.12 W current limited P channel MOSFET which can operate over an input voltage range of 1.8 5.5 V. voltage con

Features

1.8 to 5.5 V Input Voltage Range.
Controlled Turn.
On.
0.15.
1.5 A Adjustable Current Limit.
±10% Current Limit Accuracy vs. Temperature.
Under.
Voltage Lockout (UVLO).
Thermal Shutdown.
< 2 mA Shutdown Current.
Fast Current Limit Response Time.
5 ms to Moderate Over Currents.
30 ns to Hard Shorts.
Reverse Current Blocking.
These Devices are Pb.
Free and are.
