FPF2164, FPF2163 - Full Function Load Switch

Fairchild Semiconductor

The FPF2164 by Fairchild Semiconductor is a Full Function Load Switch. Below is the official datasheet preview.

📥 Download Datasheet

FPF2164 Full Function Load Switch by Fairchild Semiconductor - Datasheet Preview — Official preview page of the **FPF2164** Full Function Load Switch datasheet (Fairchild Semiconductor).

Datasheet Details

Part number	FPF2164, FPF2163
Manufacturer	Fairchild Semiconductor
File Size	842.76 KB
Description	Full Function Load Switch
Datasheet	FPF2163_FairchildSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: FPF2164, FPF2163. Please refer to the document for exact specifications by model.

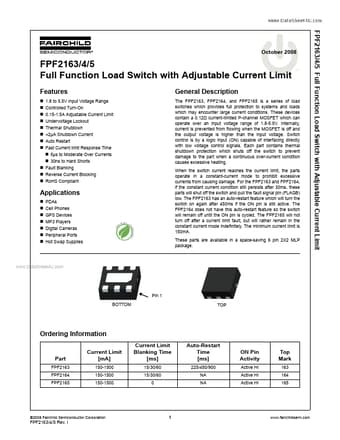

Additional preview pages of the FPF2164 datasheet.

FPF2164 Product details

Description

The FPF2163, FPF2164, and FPF2165 is a series of load switches which provides full protection to systems and loads which may encounter large current conditions.

Features

1.8 to 5.5V Input Voltage Range.
Controlled Turn-On.
0.15-1.5A Adjustable Current Limit.
Undervoltage Lockout.
Thermal Shutdown.
