FPF2000 - Advanced Load Management

ON Semiconductor

The FPF2000 by ON Semiconductor is a Advanced Load Management. Below is the official datasheet preview.

📥 Download Datasheet

FPF2000 Advanced Load Management by ON Semiconductor - Datasheet Preview — Official preview page of the **FPF2000** Advanced Load Management datasheet (ON Semiconductor).

Datasheet Details

Part number	FPF2000
Manufacturer	ON Semiconductor
File Size	229.67 KB
Description	Advanced Load Management
Datasheet	FPF2000-ONSemiconductor.pdf

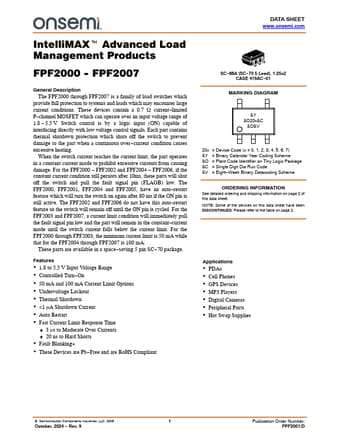

Additional preview pages of the FPF2000 datasheet.

FPF2000 Product details

Description

The FPF2000 through FPF2007 is a family of load switches which provide full protection to systems and loads which may encounter large current conditions.These devices contain a 0.7 W current limited P channel MOSFET which can operate over an input voltage range of 1.8 5.5 V.

Features

1.8 to 5.5 V Input Voltage Range.
Controlled Turn.
On.
50 mA and 100 mA Current Limit Options.
Undervoltage Lockout.
Thermal Shutdown.
