FPF2004, FPF - IntelliMAX Advanced Load Management

Fairchild Semiconductor

The FPF2004 by Fairchild Semiconductor is a IntelliMAX Advanced Load Management. Below is the official datasheet preview.

📥 Download Datasheet

FPF2004 IntelliMAX Advanced Load Management by Fairchild Semiconductor - Datasheet Preview — Official preview page of the **FPF2004** IntelliMAX Advanced Load Management datasheet (Fairchild Semiconductor).

Datasheet Details

Part number	FPF2004, FPF
Manufacturer	Fairchild Semiconductor
File Size	516.10 KB
Description	IntelliMAX Advanced Load Management
Datasheet	FPF-200.pdf
Note	This datasheet PDF includes multiple part numbers: FPF2004, FPF. Please refer to the document for exact specifications by model.

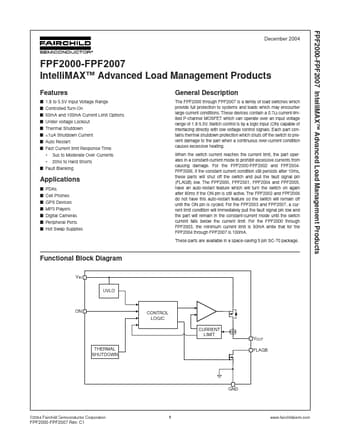

Additional preview pages of the FPF2004 datasheet.

FPF2004 Product details

Description

The FPF2000 through FPF2007 is a family of load switches which provide full protection to systems and loads which may encounter large current conditions.

Features

1.8 to 5.5V Input Voltage Range Controlled Turn-On 50mA and 100mA Current Limit Options Under voltage Lockout Thermal Shutdown.
