FDS6986AS - Dual Notebook Power Supply N-Channel FET

Name: FDS6986AS
SKU: FDS6986AS-1424457

ON Semiconductor

📥 Download Datasheet

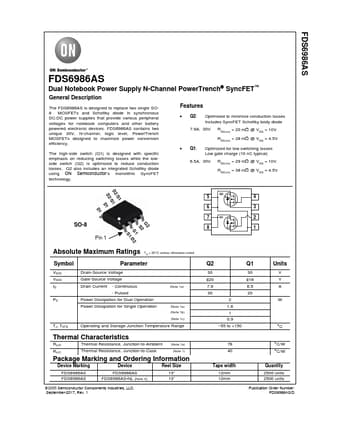

FDS6986AS Datasheet Preview — Preview of FDS6986AS PDF

Datasheet Details

Part number	FDS6986AS
Manufacturer	ON Semiconductor
File Size	554.82 KB
Description	Dual Notebook Power Supply N-Channel FET
Datasheet	FDS6986AS-ONSemiconductor.pdf

FDS6986AS Product details

Description

The FDS6986AS is designed to replace two single SO8 MOSFETs and Schottky diode in synchronous DC:DC power supplies that provide various peripheral voltages for notebook computers and other battery powered electronic devices.

Features

Q2: Optimized to minimize conduction losses Includes SyncFET Schottky body diode 7.9A, 30V RDS(on) = 20 mΩ @ VGS = 10V RDS(on) = 28 mΩ @ VGS = 4.5V.
Q1: Optimized for low switching losses Low gate charge (10 nC typical) 6.5A, 30V RDS(on) = 29 mΩ @ VGS = 10V RDS(on) = 38 mΩ @ VGS = 4.5V D2D/S21/S1D1 D1 D D D D G2 S2 G1S1/D2 SO-8 Pin 1 SO-8 G SS S Absolute Maximum Ratings TA = 25°C unless otherwise noted Symbol VDSS VGSS ID PD TJ, TSTG Parameter Drain-Source Volt.
