FDB2552 - 150V 37A N-Channel MOSFET

FDB2552 Description

MOSFET * N-Channel, POWERTRENCH) 150 V, 37 A, 36 mW FDP2552, FDB2552 .

FDB2552 Features

* RDS(on) = 32 mW (Typ. ), VGS = 10 V, ID = 16 A
* Qg(tot) = 39 nC (Typ. ), VGS = 10 V
* Low Miller Charge
* Low QRR Body Diode
* UIS Capability (Single Pulse and Repetitive Pulse)
* These Devices are Pb
* Free, Halide Free and are RoHS Compliant A

FDB2552 Applications

* DC/DC Converters and Off
* line UPS
* Distributed Power Architectures and VRMs
* Primary Switch for 24 V and 48 V Systems
* High Voltage Synchronous Rectifier MOSFET MAXIMUM RATINGS (TC = 25°C, unless otherwise noted) Symbol Parameter Ratings Unit VDSS Dr

📥 Download Datasheet

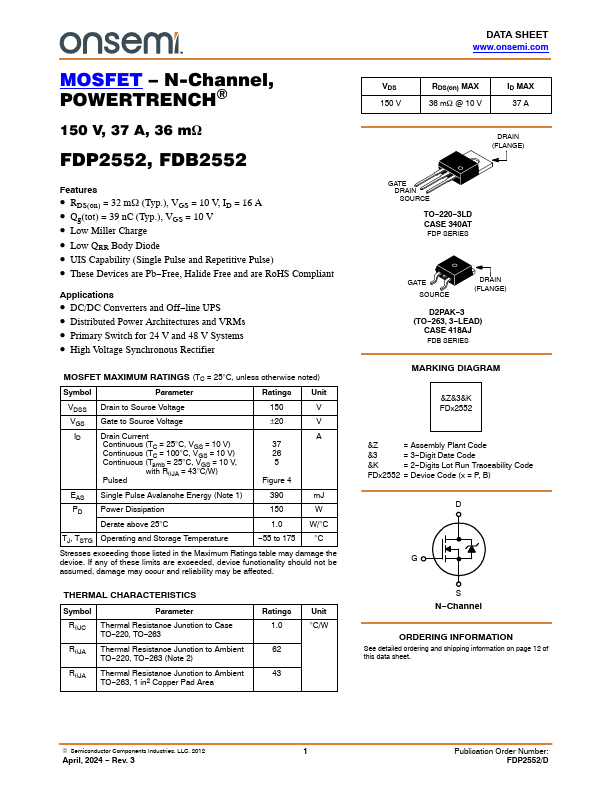

Preview of FDB2552 PDF

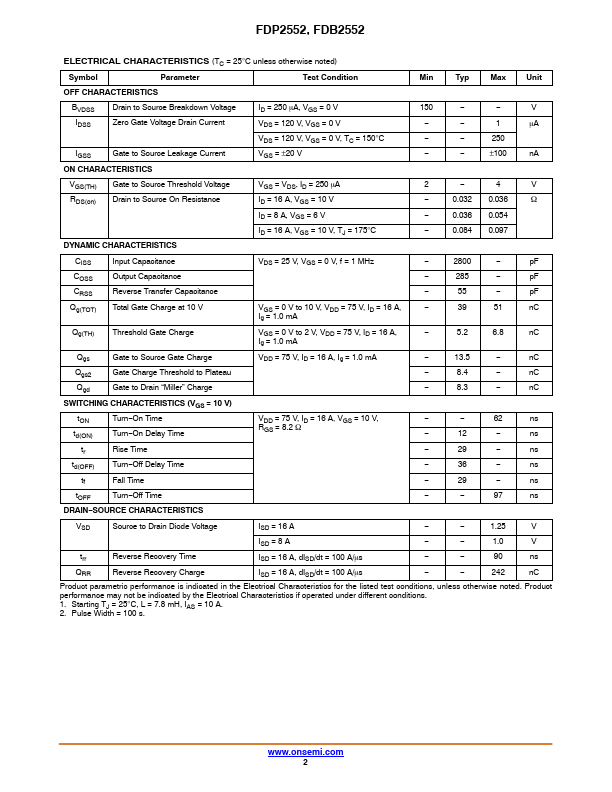

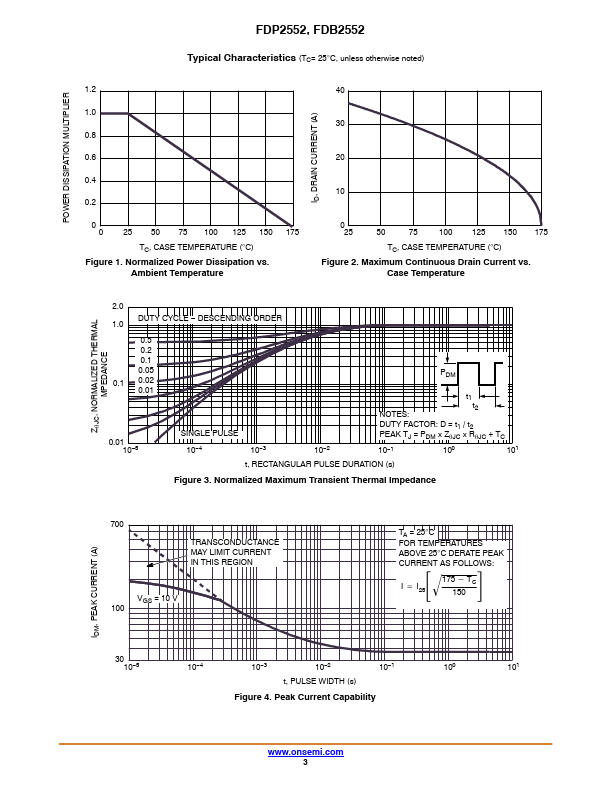

datasheet Preview Page 2 datasheet Preview Page 3
