FAN65008B - Voltage Mode Synchronous PWM Buck Regulator

Product Overview

📥 Download Datasheet

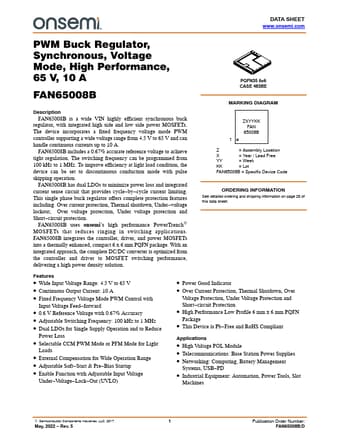

Datasheet preview – FAN65008B

Datasheet Details

Part number FAN65008B
Manufacturer ON Semiconductor
File Size 1.52 MB
Description Voltage Mode Synchronous PWM Buck Regulator
Datasheet download datasheet FAN65008B Datasheet
Additional preview pages of the FAN65008B datasheet.

Product details

Description

FAN65008B is a wide VIN highly efficient synchronous buck regulator, with integrated high side and low side power MOSFETs.The device incorporates a fixed frequency voltage mode PWM controller supporting a wide voltage range from 4.5 V to 65 V and can handle continuous currents up to 10 A.FAN65008B includes a 0.67% accurate reference voltage to achieve tight regulation.The switching frequency can be programmed from 100 kHz to 1 MHz.To improve efficiency at light load condition, the device can

Features
