CAT6217 - 150mA CMOS LDO Regulator

ON Semiconductor

📥 Download Datasheet

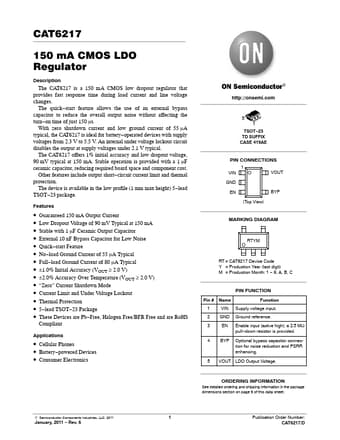

CAT6217 Datasheet Preview — Preview of CAT6217 PDF

Datasheet Details

Part number	CAT6217
Manufacturer	ON Semiconductor
File Size	219.61 KB
Description	150mA CMOS LDO Regulator
Datasheet	CAT6217_ONSemiconductor.pdf

CAT6217 Product details

Description

The CAT6217 is a 150 mA CMOS low dropout regulator that provides fast response time during load current and line voltage changes. start feature allows the use of an external bypass capacitor to reduce the overall output noise without affecting the turn on time of just 150 ms. operated devices with supply voltages from 2.3 V to 5.5 V.

Features

include output short.
circuit current limit and thermal protection. The device is available in the low profile (1 mm max height) 5.
lead TSOT.
23 package. Features.
Guaranteed 150 mA Output Current.
Low Dropout Voltage of 90 mV Typical at 150 mA.
Stable with 1 mF Ceramic Output Capacitor.
External 10 nF Bypass Capacitor for Low Noise.
Quick.
start Feature.
No.
load Ground Current of 55 mA Typical.
F.
